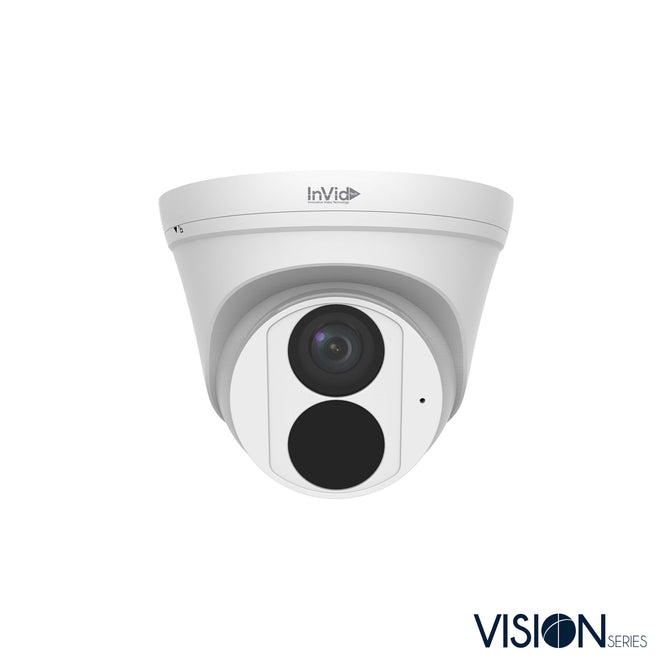

Invid VIS-P8TXIR28NH-LC2 8 Megapixel Turret, 2.8mm

Camera

Sensor

1/2.7”, 8.0 megapixel, progressive scan, CMOS

Minimum

Illumination

Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°             Tilt: 0° ~ 80°              Rotate: 0° ~ 360°

WDR

120dB

S/N

>56dB

Lens

Lens

2.8mm@F1.6                                    4.0mm@F1.6

Lens Mount

M12

Angle of View (H)

112.9°                                                 91.2°

Angle of View (V)

59.1°                                                   47.9°

Angle of View (O)

121.2°                                                  95.9°

DORI

DORI Distance

Lens (mm)    Detect (ft)        Observe (ft)       Recognize (ft)        Identify (ft)

2.8                275.6 (84m)     108.3 (33m)          55.1 (16.8m)         27.6 (8.4m)

4.0               393.7 (120m)      157.5 (48m)          78.7 (24m)         39.4 (12m)

Illuminator

IR Range

Up to 98 ft  (30m) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps;

4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Supported

9:16 Corridor Mode

Supported

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness,

gain adjustable by web browser

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

HLC

Supported

BLC

Supported

Defog

Digital Defog

Events

Basic Detection

Cross line, intrusion(based on human body detection)

Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, access policy, ARP

protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

Compatible

Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

InVid Vision (Mobile App)  Vision Tools (IP Utility)  InVid CMS

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Built-in Mic

Support

Audio Sensitivity

-32±3dB

Network

1 RJ45 10M/100M Base-TX Ethernet

Certifications

EMC

FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014

EN 61000-3-3-2013

Safety

IEC 62368-1     EN 62368-1      UL 62368-1

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions

(L × W × H)

Φ4.6” x 3.8”  (Φ118 x 95mm)

Weight

0.79lb  (0.36kg)

Material

Metal + Plastic

Working

Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Strorage

Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Protection

Ingression protection: IP67z
