Description

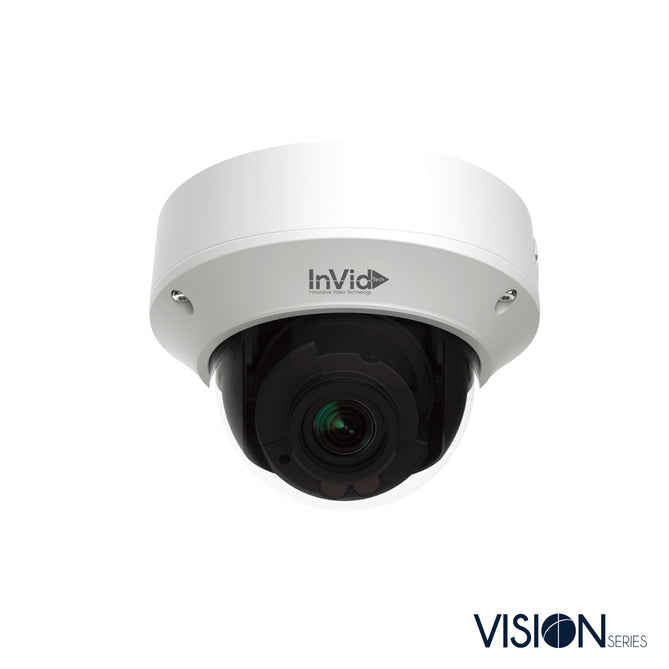

8 Megapixel IP Plug & Play Outdoor Dome, Motorized Auto-Focus Lens, up to 131’ IR Range, WDR, Audio Input/Output, Built-in Mic, SD Card Slot, 12VDC/PoE
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 8 Megapixel Resolution
- Motorized Auto-Focus 2.8-12mm Lens
- True Day/Night with IR Range up to 131’
- Starlight Illumination
- Ultra 265/H.264/MJPEG
- 20 FPS Recording and Live
- True WDR 120dB
- Cloud Upgradeable
- Micro SD Slot: Up to 256GB
- Audio Input: Built-In Mic
- Audio Output
- IP67 Weatherproof
- IK10 Vandal resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
VIS-P8DRXIRA2812NH |
Sensor |
1/2.8", 8.0 megapixel, progressive scan, CMOS |
Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
Day/Night |
IR-cut filter with auto switch (ICR) |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Adjustment angle |
Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~ 355° |
WDR |
120dB |
S/N |
>56dB |
Lens |
|
Lens |
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
Angle of View (H) |
107.4° ~ 29.2° |
Angle of View (V) |
54.2° ~ 16.3° |
Angle of View (O) |
111.0° ~ 33.1° |
DORI |
|
DORI Distance |
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) |
2.8 86.9 34.8 17.4 8.7 |
|
12 372.4 149 74.5 37.2 |
|
Illuminator |
|
IR Range |
Up to 131ft (40m) IR range |
Wavelength |
850nm |
IR On/Off Control |
Auto/Manual |
Video |
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
H.264 code profile |
Baseline profile, Main profile, High profile |
Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Video Bit Rate |
128 Kbps~16 Mbps |
U-code |
Support |
ROI |
Up to 8 areas |
Video Stream |
Triple streams |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 4 areas |
Image |
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
Digital Noise Reduction |
2D/3D DNR |
Smart IR |
Support |
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping |
Supported |
HLC |
Supported |
BLC |
Supported |
Defog |
Digital Defog |
Intelligent |
|
Smart intrusion prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
Face capture |
Support |
Statistical Analysis |
People counting, support tripwire people counting and area people counting |
Events |
|
Basic Detection |
Motion detection, tampering alarm, audio detection |
General Function |
Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication |
Audio |
|
Audio Compression |
G.711 |
Audio Bitrate |
64 Kbps |
Two-way audio |
Supported |
Suppression |
Supported |
Sampling Rate |
8KHZ |
Storage |
|
Edge Storage |
Micro SD, up to 256GB |
Network Storage |
ANR, NAS(NFS) |
Network |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
Client |
InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS |
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 & below |
Interface |
|
Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
Alarm I/O |
1/1 |
RS485 |
N/A |
Built-in Mic |
Support |
Audio Sensitivity |
-32±3dB |
Built-in Speaker |
N/A |
WIFI |
N/A |
Network |
1 RJ45 10M/100M Base-TX Ethernet |
Video Output |
N/A |
Certifications |
|
EMC |
FCC CFR 47 Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013 |
Safety |
IEC 62368-1, EN 62368-1, UL 62368-1 |
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
Protection |
Ingression protection: IP67 (IEC 60529-2013) Vandal resistant: IK10 (IEC 62262:2002) |
General |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W |
Power Interface |
Ø 5.5mm coaxial power plug |
Dimensions (Ø x H) |
Ø5.8” x 4.4” (Φ148 x 111.4mm) |
Weight |
2.14lb (0.97kg) |
Material |
Metal |
Working Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
Surge Protection |
6KV |
Reset Button |
Supported |
