Description

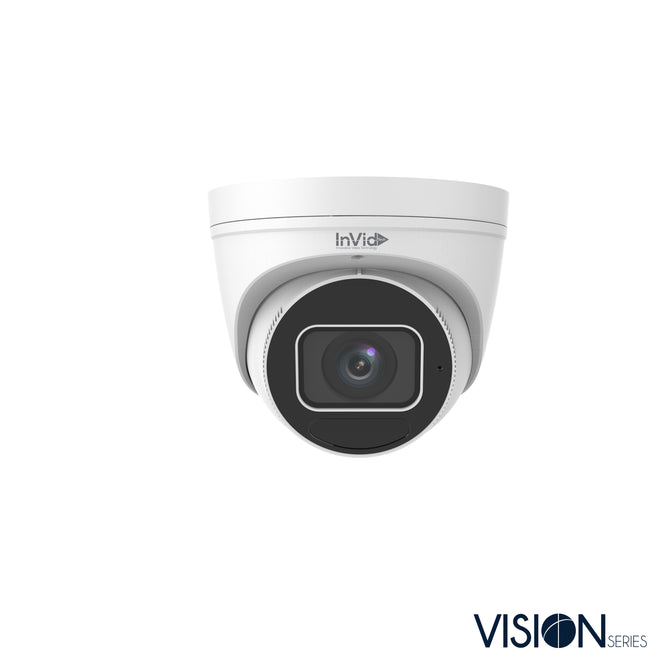

5 Megapixel IP Plug & Play, Outdoor Vandal Turret, 2.7-13.5mm A/F Motorized, 131’ EXIR Range, WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 5 Megapixel Resolution
- Motorized Auto-Focus 2.7-13.5mm Lens
- True Day/Night with IR Range up to 131’
- Smart IRs
- Starlight Illumination
- Ultra H.265/H.265/H.264/MJPEG Compression
- 25 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Built-in Mic
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
VIS-P5TXIRA27135NH |
Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
Lens |
2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens |
DORI Distance |
Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
2.7 199.5(60.8m) 79.7(24.3m) 40(12.2m) 20(6.1m) |
|
13.5 996.7(303.8m) 398.6(121.5m) 199.5(60.8m) 99.7(30.4m) |
|
Angle of View (H) |
106.25°~ 30.42° |
Angle of View (V) |
56.36°~ 17.22° |
Angle of View (O) |
110.34°~34.18° |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Adjustment angle |
Pan: 0°~360° Tilt: 0° ~ 75° Rotate: 0°~360° |
Minimum Illumination |
Colour: 0.002Lux (F1.35, AGC ON) 0Lux with IR |
Day/Night |
IR-cut filter with auto switch (ICR) |
Digital noise reduction |
2D/3D DNR |
S/N |
>56dB |
IR Range |
Up to 131ft (40m) IR range |
Wavelength |
850nm |
IR On/Off Control |
Auto/Manual |
Defog |
Digital Defog |
WDR |
120dB |
Video |
|
Video Compression |
Ultra 265,H.265, H.264, MJPEG |
H.264 code profile |
Baseline profile, Main Profile |
Frame Rate |
Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
Video Bit Rate |
128 Kbps~16 Mbps |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 4 areas |
ROI |
Up to 8 areas |
Motion Detection |
Up to 4 areas |
Image |
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction |
2D/3D DNR |
Smart IR |
Support |
Flip |
Normal/Vertical/Horizontal/90°Clockwise/90°Anti-clockwise |
Dewarping |
Supported |
HLC |
Supported |
BLC |
Supported |
Audio |
|
Audio Compression |
G.711 |
Suppression |
Supported |
Sampling Rate |
8KHZ |
Storage |
|
Edge Storage |
Micro SD, up to 256GB |
Network Storage |
ANR |
Smart |
|
Behavior Detection |
Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection |
Network |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
Client |
InVid Vision (Mobile App) |
Vision Tools (IP Utility) |
|
InVid CMS |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 & below, Firefox 52 &below |
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface |
|
Built-in Mic |
Supported |
Audio Sensitivity |
-32±3dB |
Network |
1 RJ45 10M/100M Base-TX Ethernet |
Certifications |
|
Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
General |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
Power consumption: Max 8.16W |
|
Dimensions (Ø x H) |
Ø5.1” x 4.3” (Φ129 x 110mm) |
Net Weight |
1.48lb (0.67kg) |
Material |
Metal |
Working Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
Surge Protection |
6KV |
Ingress Protection |
IP67 |
Vandal resistant |
IK10 |
Reset Button |
Supported |
