Description

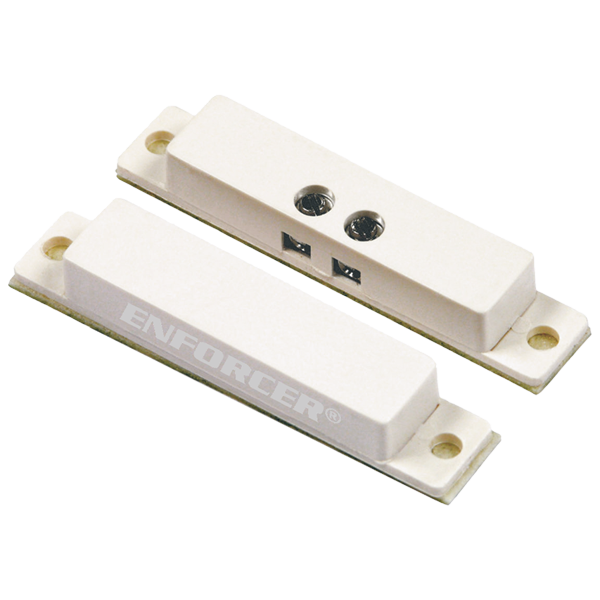

- Miniature surface-mount magnetic contacts
- Gold-plated screw terminals for longer life and reliability
- Tape to cover screw terminals included
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
- 1″ (25mm) Gap
- Closed loop
- Mounting screws and double-sided tape included
- Lifetime limited warranty
- White (brown also available)
- Pack of 10
Specifications
| Loop Type | Closed Loop |
| Electrical Configuration | N/O |
| Color | White |
| Mounting Tabs | Yes / removable |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | Gold-plated |
| Contacts | Iridium-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 2″x3/8″x1/4″ (51x10x6 mm) |
| Magnet Dimensions | 2″x3/8″x1/4″ (51x10x6 mm) |
| Magnet Type | Rare-earth neodymium |
