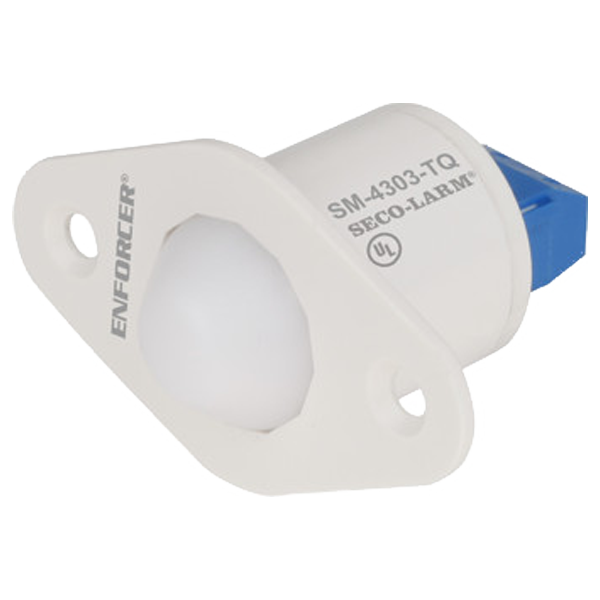

Seco-Larm SM-4303-TQ/W Rollerball-Type Quick-Connect Terminal Recessed-Mount Magnetic Contact – White, 1/4″ (6mm) Gap, Closed loop, Pack of 10

Seco-LarmSKU: SM-4303-TQ/W

Price:
Sale price$24.75
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • Rollerball with screw connectors, white
  • Used for protecting sliding doors and windows where space is limited
  • Magnet and reed switch contained in housing
  • Contact reed switch is SPST, ruthenium on gold under plating, for a long life
  • Spacer and screws included
  • 360º Rollerball plunger travel is 1/4” (6mm)
  • Screw terminals
  • Lifetime limited warranty
  • Pack of 10



Specifications

Loop Type Closed loop
Electrical Configuration N/O
Switch Travel 1/4″ (6mm)
Switch Type Plunger
Color White
Material High-impact ABS plastic
Contacts Ruthenium on gold underplating
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -15°~160°F (-25°~70°C)
Switch Cycles 50 Million (0.1mA@5VDC)

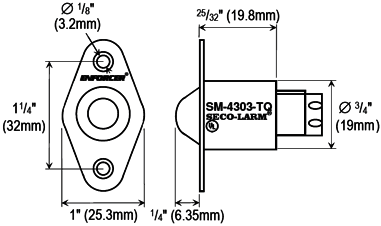

Switch Dimensions 25/32″ x 3/4″ x 1/4″ (19.8 x 19 x 6.3 5 mm)
Magnet Type Rubber
