Description

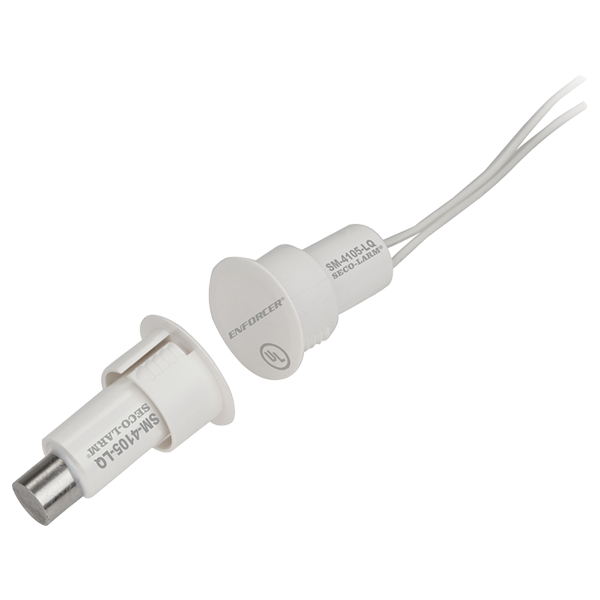

- Used for steel framed doors and windows where space is limited or to avoid unsightly installations
- Strong one-piece construction
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and a longer life
- 1″ (25mm) Gap, with 18″ (46cm) wire leads
- Lifetime limited warranty
- White case, high-impact ABS plastic
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″ (25mm) |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | 18″ (46cm) leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-3/16″ x 15/16″ x 3/4″ (30 x 24 x 19 mm) |
| Magnet Dimensions | 1-3/16″ x 15/16″ x 3/4″ (30 x 24 x 19 mm) |
| Magnet Type | Rare-earth Neodymium alloy |
