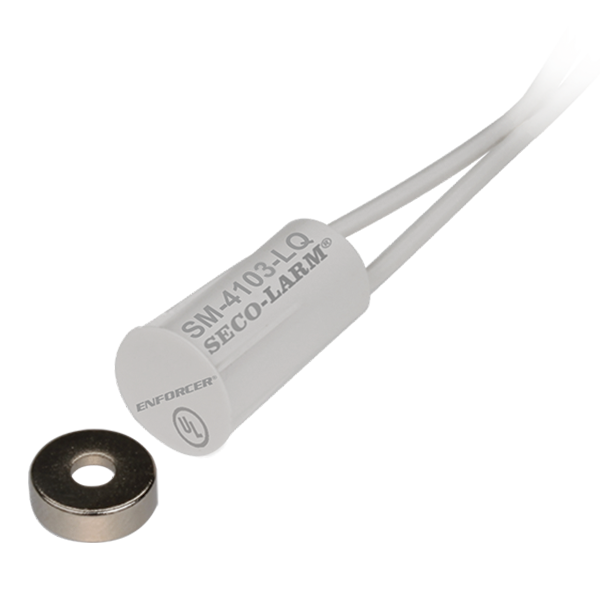

Description
- Used for protecting sliding doors and windows where space is limited
- Rare-earth magnet with nickel plating to protect against chipping and corrosion
- Contact reed switch is SPST, ruthenium on gold under-plating, for a long life
- High-impact ABS plastic
- Miniature size assures ease of concealment
- Switch and magnet have ribs for securing in holes
- 1/2″ (13mm) Gap, white, with 18″ (46cm) Leads and 9/16″ (14.5mm) switch
- 3/8″ Press-fit with stubby 9/16″ switch
- Lifetime limited warranty
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/0 |
| Operation Gap | 1/2″ (13mm) |
| Color | White |
| Material – Case | High-impact ABS plastic |
| Material – Terminals | 18″ (46cm) leads |
| Contacts | Ruthenium on gold underplating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |

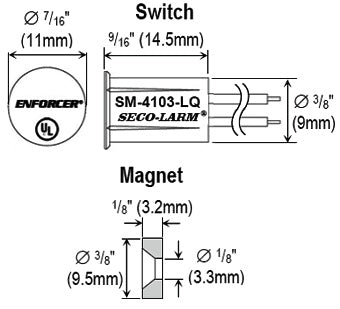

| Switch Dimensions | 9/16″ x 7/16″ x 3/8″ (14.5 x 11 x 9 mm) |
| Magnet Type | Rare-earth Neodymium alloy |
