Description

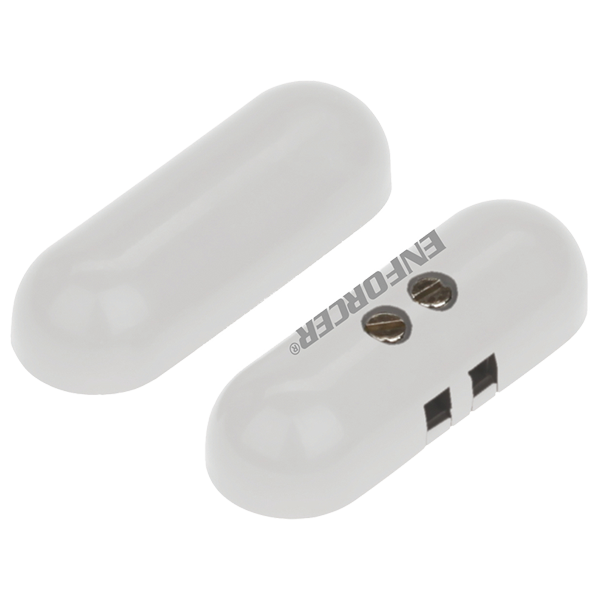

- Miniature capsule-type surface-mount magnetic contacts
- Gold-plated external screw terminals for longer life and reliability with tape to cover terminals
- Adhesive mounting (double-sided tape included)
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and a longer expected life
- For closed loop circuits
- 1″ (25mm) Gap
- Lifetime limited warranty
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″ (25mm) |
| Terminals | Gold-plated quick-connect |
| Color | White |
| Material | High-impact ABS plastic |
| Contacts | Iridium-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |

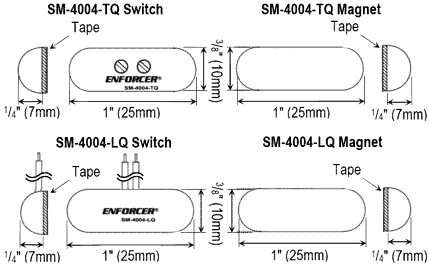

| Switch Dimensions | 1″ x 3/8″ x 1/4″ (25 x 10 x 7 mm) |
| Magnet Dimensions | 1″ x 3/8″ x 1/4″ (25 x 10 x 7 mm) |
| Magnet Type | Rare-earth neodymium |
