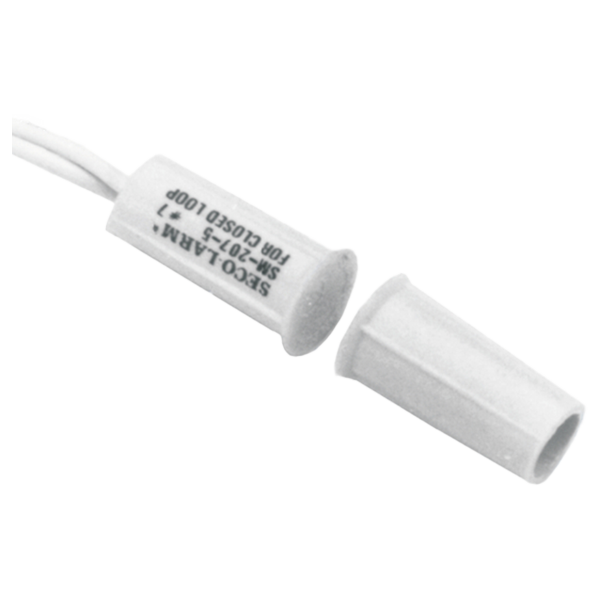

Description
- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 3/8“, Press-fit mount
- 15″ , (38cm) wire leads
- 3/8” (10mm) Gap, with Stubby 3/4” (19mm) Switch and Magnet
- Lifetime limited warranty
- White case
- Pack of 10
Specifications
Loop Type | Closed loop |
Electrical Configuration | N/O |
Operation Gap | 3/8″, (10mm) |
Color | White |
Leads | Pre-wired 15″, #22 |
Material – Case | High-impact ABS plastic / epoxy compound |
Material – Contact | Deactivated rhodium on gold under-plating |
Contact Rating | 1.0A@10VDC (max), 10W (max) |
Operating Temperature | -15º~+160º F (-25º~70º C) |
Switch Cycles | 50 Million (0.1mA@5VDC) |

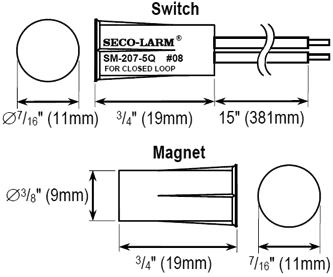

Switch Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
Magnet Dimensions | 3/4″ x 7/16″ x 3/8″ (19 x 11 x 9 mm) |
Magnet Type | Alnico 5 |
