Description

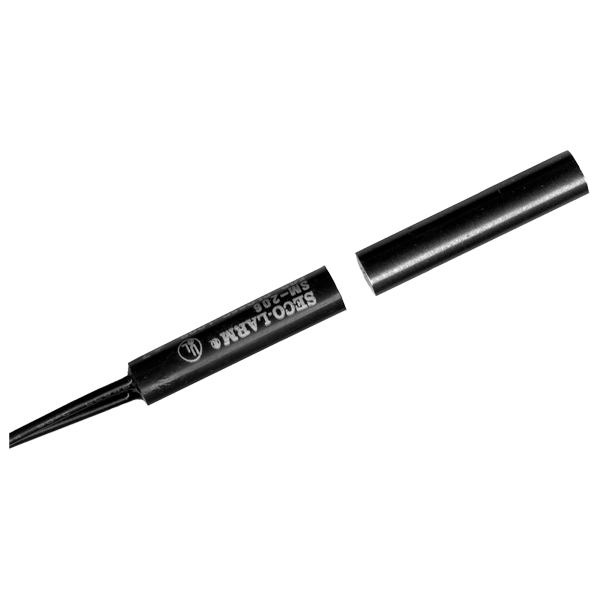

- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 1/4″, Press-fit mount
- 1″ (25mm) Gap
- 1/4″, Press-fit mount 15″, (38cm) wire leads
- Lifetime limited warranty
- Brown case
- Pack of 10
Specifications
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1″, (25mm) |
| Color | Brown |
| Leads | Pre-wired 15″, #22 |
| Material – Case | High-impact ABS plastic / epoxy compound |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-7/32″ x 1/4″ (31 x 6.35 mm) |
| Magnet Dimensions | 1-1/4″ x 1/4″ (32 x 6.35 mm) |
| Magnet Type | Alnico 5 |
