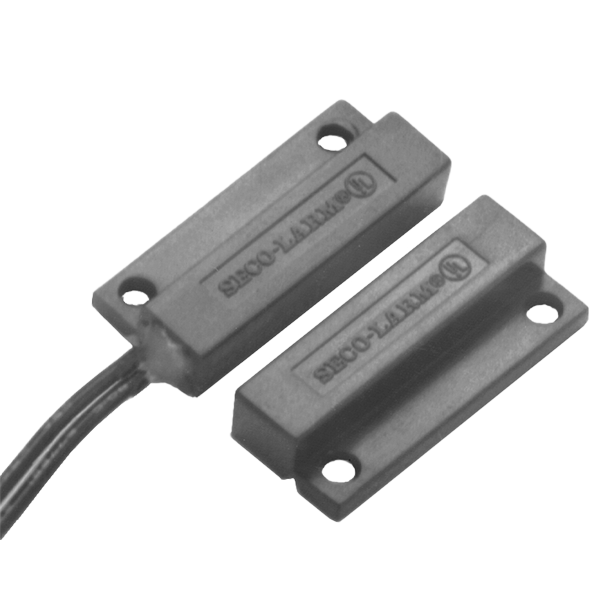

Seco-Larm SM-205Q/BR Miniature Surface-Mount Magnetic Contact – Brown, 3/4″ (19mm) Gap, Closed loop, UL Listed, Pack of 10

Seco-LarmSKU: SM-205Q/BR

Sale price$30.00
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800


  • Miniature “flange type” surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
  • Screw or adhesive mount
  • Mounting flange breaks off for extra miniature size
  • High-impact weatherproof white ABS plastic case
  • Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
  • 15″ (38cm) leads extend from side of switch
  • 3/4” (19mm) Gap
  • Lifetime limited warranty
  • Pack of 10



Loop Type Closed loop
Electrical Configuration N/O
Operation Gap 3/4″ (19mm)
Terminals 15″ (38cm) leads from side
Color Brown
Material – Case High-impact ABS plastic
Contacts Deactivated rhodium on gold under-plating
Contact Rating 1.0A@10VDC (max), 10W (max)
Operating Temperature -15º~+160º F (-25º~70º C)
Switch Cycles 50 Million (0.1mA@5VDC)

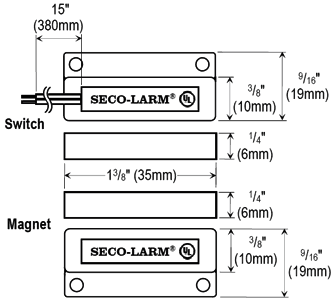

Switch Dimensions 1-1/4″x5/16″x1/4″ (32x8x6 mm)
Magnet Dimensions 1-1/4″x5/16″x1/4″ (32x8x6 mm)
Magnet Type Alnico 5
