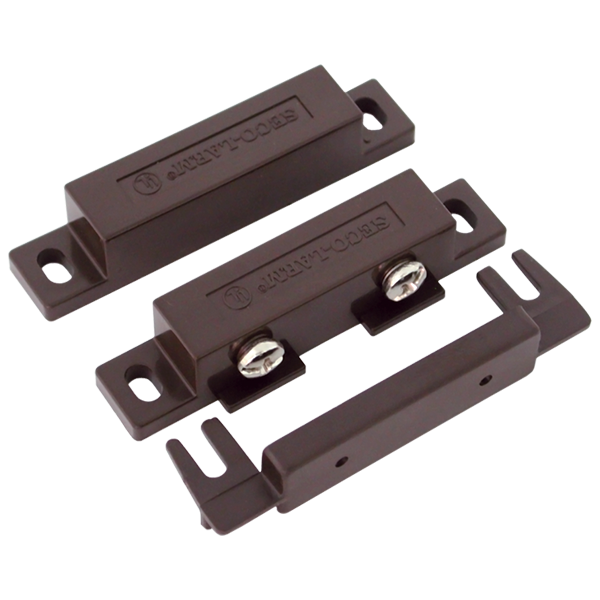

Description
- With mounting tabs, screw mount using side tabs
- Terminal cover provided (required for all applications)
- ABS plastic case has lip to prevent wires from accidentally touching metal mountings and slotted mounting holes for easier gap adjustment
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- 3/4″ (19mm) Gap
- Mounting screws included
- Lifetime limited warranty
- Brown case
- Pack of 10
Specifications
Loop Type | Closed loop |
Electrical Configuration | N/O |
Operation Gap | 3/4″ (19mm) |
Terminals | Screw-type |
Color | Brown |
Mounting Tabs | Yes |
Material – Case | High-impact ABS plastic |
Contacts | Deactivated rhodium on gold under-plating |
Contact Rating | 1.0A@10VDC (max), 10W (max) |
Operating Temperature | -15º~+160º F (-25º~70º C) |
Switch Cycles | 50 Million (0.1mA@5VDC) |

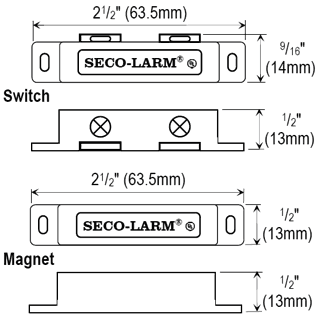

Switch Dimensions | 2-1/2″ x 9/16″ x 1/2″ (63.5 x 14 x 13 mm) |
Magnet Dimensions | 2-1/2″ x 1/2″ x 1/2″ (63.5 x 13 x 13 mm) |
Magnet Type | Ferrite |
