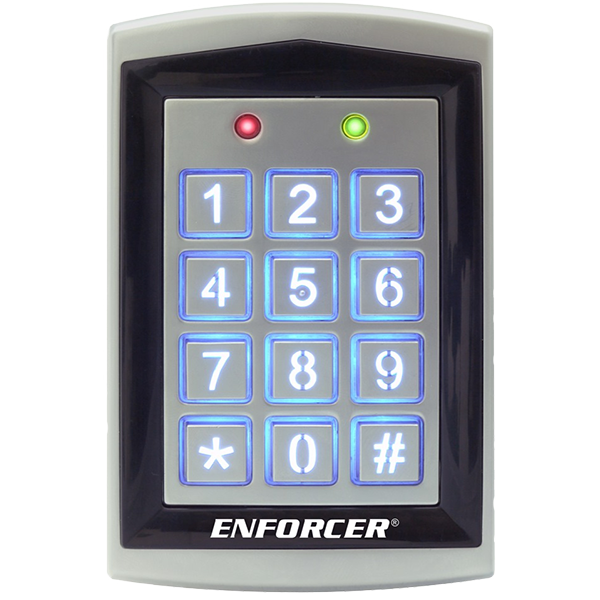

Seco-Larm SK-1323-SPQ Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Seco-LarmSKU: SK-1323-SPQ

Price:
Sale price$106.78
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • 12~24 VAC/VDC operation
  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
  • 2 Form C relays, each rated 1 Amp @ 30VDC
  • Each relay has programmable output time from 1~99 seconds or toggle
  • Output #2 can be programmed for use with a doorbell
  • 2 Egress inputs and 1 door sensor input
  • Backlit keys for easy nighttime use
  • Two multi-colored status LEDs
  • Able to mount to a single-gang back box
  • All features are programmed directly from the keypad – no need for an external programmer
  • EEPROM memory protects programmed information in case of power loss
  • Optical tamper for added security
  • Circuitry is potted with epoxy for outdoor use
  • IP65 Weatherproof rating, rugged aluminum construction
  • Built-in proximity card reader
  • 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
  • Output #2 may have either a card or a code programmed for each user



Specifications

Type Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of User Codes Up to 1,010
Operating Voltage 12~24 VAC/VDC
Current Draw – Standby 64mA@12VDC
Current Draw- Active 92-120 mA@12VDC
Relay Outputs (2) 1A@30VDC, Form C, NO/COM/NC
Egress Inputs 2, N.O. Ground
Door Sensor Input N.C. Ground
Tamper Sensor Optical
Proximity Reader Frequency 125kHz
Keypad LED Life 60,000 hours (over 6.8 years)
Proximity Reader Sensing Distance 1-15/16″ (50mm)
Operating Temperature -4°~122° F (-20°~50° C)
Dimensions 4-3/4″x3″x7/8″ (120x76x22 mm)
Weight 1-lb, 2-oz (510g)
IP Rating Weatherproof IP65
