Description

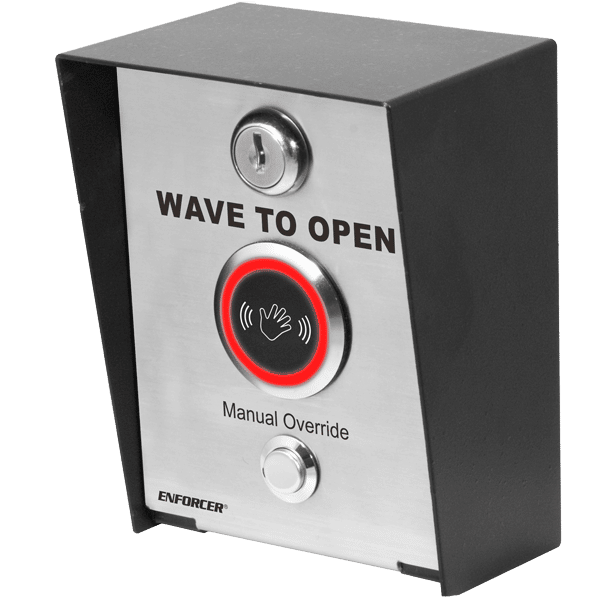

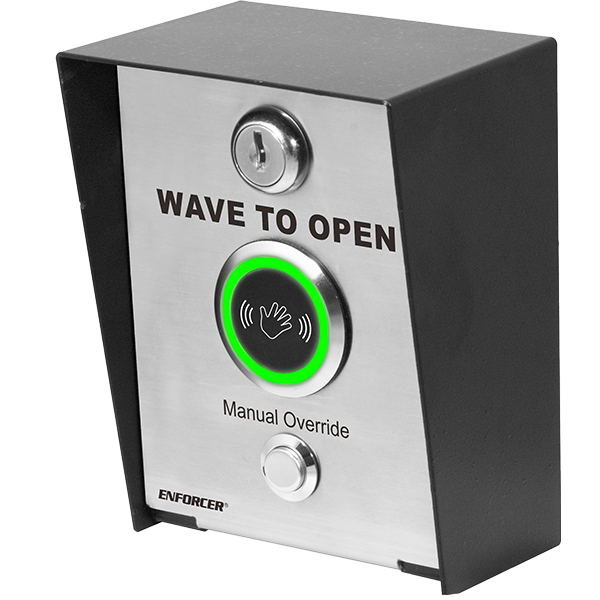

The ENFORCER Post-Mount Wave-to-Open Sensor with Access Box and Manual Override Button is a full-featured exit plate which uses IR technology to open a gate or activate a device with the simple wave of a hand reducing the risk of the spread of disease. It is suitable for areas were no special clearance is required for exit and a longer-range sensor may cause unwanted activation. It also includes a manual override button.
- Adjustable sensor range up to 7″ (18cm)
- Weatherproof (IP65) for outdoor use
- Stainless steel plate
- Hinged plate easily removes from box for easy wiring
- 1A Relay, adjustable trigger duration 0.8~30 seconds or toggle
- Gooseneck- or wall-mountable
- Manual override button
- LED-illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) on sensor activation
- Includes heavy-duty steel box
Specifications
| Operating Voltage | 12~24 VDC |
| Current Draw | Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC |
| Relay Type | Form C dry contact, 1A@30VDC |
| Response Time | 10ms |
| LEDs – Standby | Red |
| LEDs – Triggered | Green |
| Output Time | 0.8~30 s or toggle |
| Range | 2″~7″ (5~18 cm) |
| IP Rating | Weatherproof IP65 (Front panel only) |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Weight | 1-lb 9-oz (710g) |
| Dimensions | 4″ x 5-1/2″ x 3″ (102 x 134 x 77 mm) |
