Description

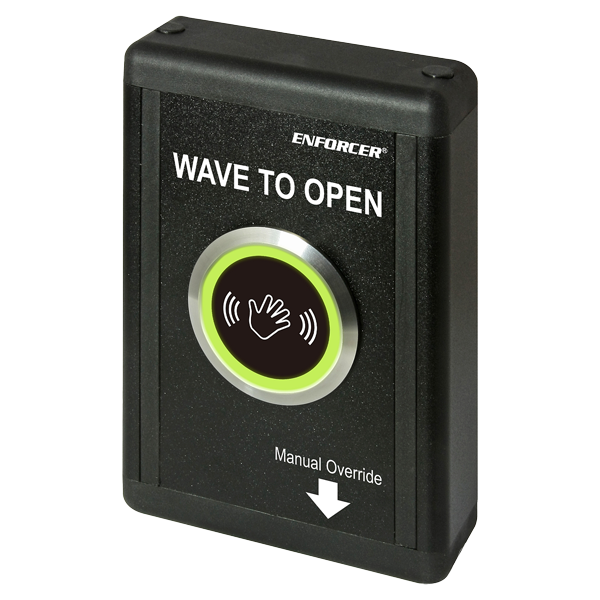

The ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. A manual override allows for operation if the sensor is disabled.
- Adjustable sensor range up to 6″ (15cm)
- 1A relay, adjustable trigger duration 0.5~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) when sensor is activated
- Aluminum alloy and ABS plastic housing
- IP54 Weather-resistant for outdoor use
Specifications
Operating Voltage | 12~24 VDC |
Current Draw | Standby (red): 20mA@12VDC / 26mA@24VDC Triggered (green): 26mA@12VDC / 32mA@24VDC Standby (green):16mA@12VDC / 20mA@24VDC Triggered (red): 31mA@12VDC / 39mA@24VDC |
Relay Type | SPDT dry contact, 1A@24VDC |
IP Rating | Weatherproof IP54 |
Response Time | 10ms |
LEDs – Standby | Red (reversible to green) |
LEDs – Triggered | Green (reversible to red) |
Output Time | 0.5~30 s, toggle |
Range | 1-9/16″~6″ (4~15 cm) |
Operating Temperature | -4°~131° F (-20°~55° C) |
Weight | 9.5-oz (270g) |
Dimensions | 3-1/8″x 4-1/2″x1-1/8″ (80x115x28mm) |
