Description

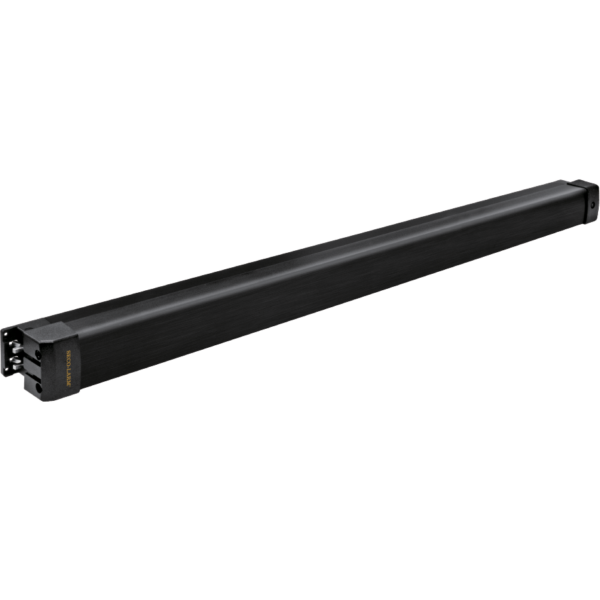

ENFORCER Electromechanical Push Bars feature a double-locking spindle for stronger and more secure locking. All models include a cylinder lock for keyed entry and some models offer solenoid-actuation to allow unlocking and relocking by an access control device.
- Double-locking spindle (stronger and more secure)
- Aluminum alloy construction, reversible, non-handed
- Fail-secure operation (but can be opened from inside by pressing the bar)
- Lock status monitoring for indicating status
- Mortise lock cylinder and keys included to release the lock from the outside
- Dogging latch on push bar to hold open
- Includes all needed hardware for typical installations
- Solenoid-actuation allows unlocking and relocking by an access device
- Solenoid is rated for both continuous and intermittent operation
Specifications
| Operating voltage | 12~24 VDC/VAC |
| Current draw | 1.5A (0.5A after 3s) |
| Endurance | Over 500,000 cycles |
| Housing | Anodized aluminum |
| For doors | 36″ (91.5cm), min. 327/8″ (83.5cm), wood or metal |
| Relay rating | Form C, 5A@125VAC |
| Mode | Fail-secure |
| Dimensions | 2 7/16″x2 9/16″x35 1/16″ (61.5x65x890 mm) |
