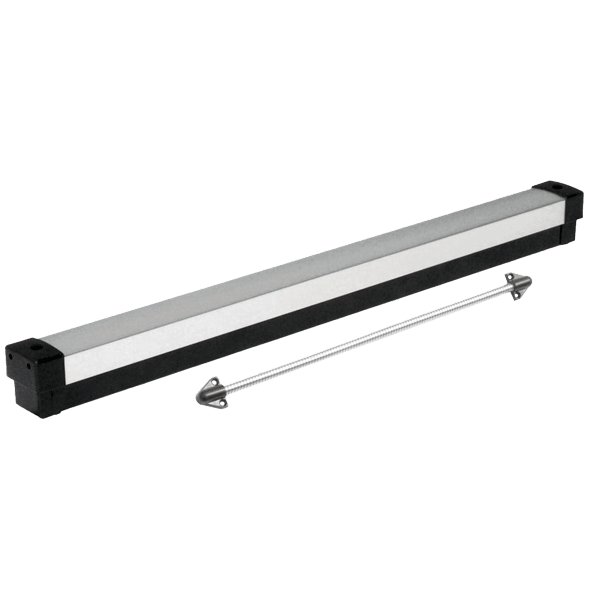

Description
- New end caps come off and go on in seconds
- Designed to allow egress from inside an area normally locked by an electric lock or electromagnetic lock, and/or to disarm (shunt) or trigger an alarm when the door is opened
- Rugged, heavy-duty construction
- Pushing the bar at any point sends a signal to release the lock and/or sound an alarm
- For 36 inch doors (actual length is 34.5 inches)
- Includes 2 built-in non-latching (momentary), dual-contact switches (NO/COM/NC), rated 25A@24VAC
- Attractive brushed-aluminum bar with black base and trim
- Includes SECO-LARM SD-969-A18Q Armored Door Cord, and mounting hardware (for mounting in wood or metal doors)
- Designed for easy cutting in field to match width of non-standard-sized doors
Specifications
| Circuit Type | 2 Built-in momentary dual contact NO or NC contacts |
| Contact Rating | 25A@24VAC |
| Door Size | For 36” doors (actual size: 34-1/2”) |
| Dimensions | 34-1/2”x2-3/4”x2-13/32” (876x70x61 mm) |
| Weight | 7-lb (3kg) |
