Seco-Larm SD-927PWCQ Wave-to-Open Sensor – White plate

Seco-LarmSKU: SD-927PWCQ

Price:
Sale price$32.20
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The ENFORCER Wave-to-Open Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

  • Range up to 2″ (5cm)
  • White plastic single-gang plate
  • 3A relay, triggers minimum 0.5 sec or as long as hand is near the sensor
  • Quick connect screw-less terminal block
  • LED illuminated sensor area for easy identification.
  • Selectable LED colors (turns from red to green or green to red) to show sensor activated.



Specifications

Type Wave-to-Open Sensor Wall Plates
Current Draw 50mA@12VDC
Sensing Range Up to 2″ (5cm)
Operating Voltage 12VDC
Reaction time 10mS

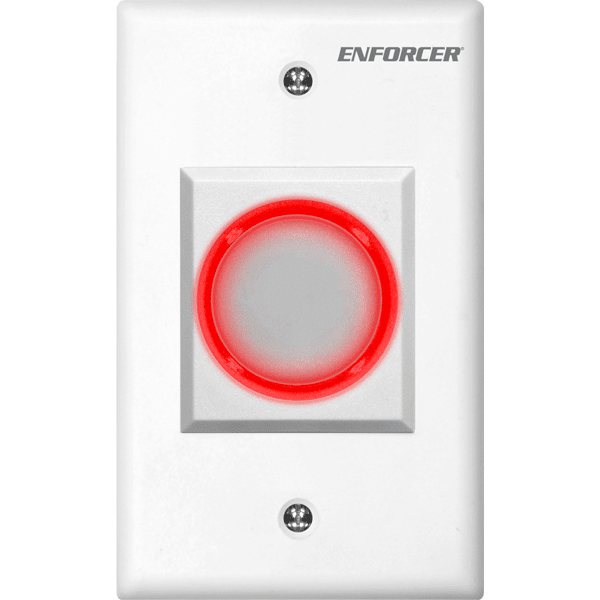

LEDs – Red Standby

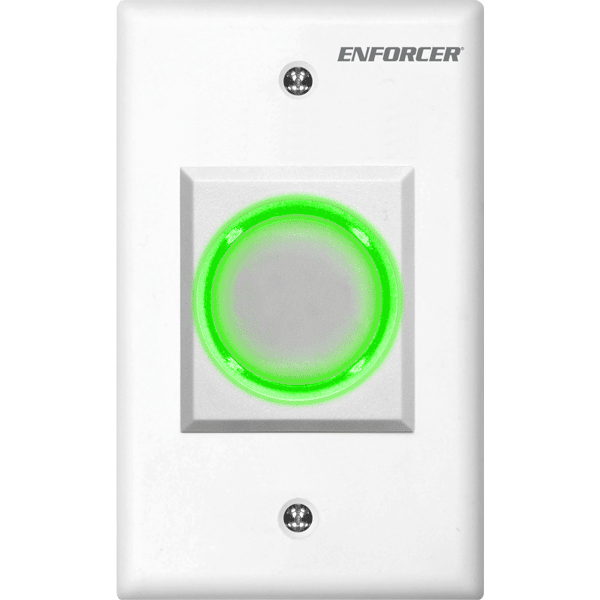

LEDs – Green Triggered
Relay Type Form C (NO/NC/COM) 3A@12VDC
Output Time 0.5S or as long as unit is triggered
Switching Capacity 3A@24VDC
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm)
Weight 2.5oz (70g)
