Description

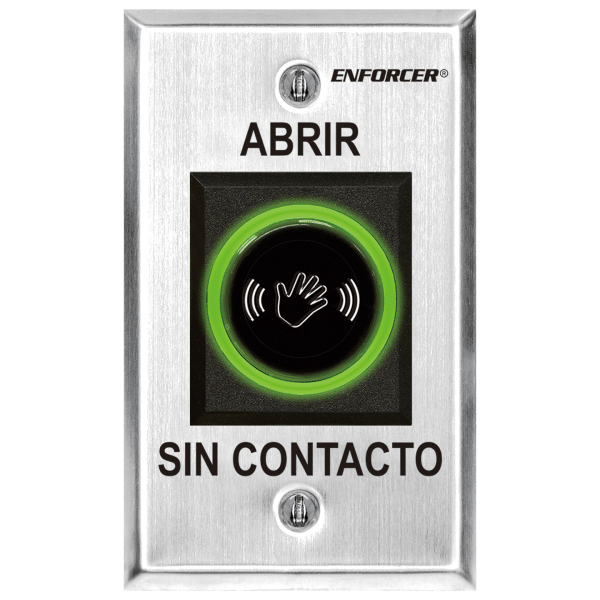

The ENFORCER Wave-To-Open Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no-touch is required, this sensor is ideal for use in hospitals, clinics, labs, clean rooms (to reduce the risk of contamination), schools, factories, or offices.
- Conforms to UL294
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8″~8″ (6~20 cm)
- Stainless steel single-gang plate
- 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- Quick connect screw-less terminal block
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) when activated
Specifications
| Type | Wave-to-open Sensor |
| Current Draw | 120mA@12VDC |
| Sensing Range | Adjustable, 2-3/8″~8″ (6-20 cm) |
| Operating Voltage | 12~24 VAC/VDC |
| Reaction time | 10mS |
| LEDs – Red | Triggered |
| LEDs – Green | Standby |
| Relay Type | Form C (NO/NC/COM) 3A@24VDC |
| Output Time | Adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor |
| Switching Capacity | 3A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm) |
| Weight | 3oz (85g) |
