Seco-Larm SD-9263-KSVQ Outdoor Wave-to-Open Sensor with Manual Override

Seco-LarmSKU: SD-9263-KSVQ

Price:
Sale price$64.02
Stock:
Usually ships within 3-5 business days

Prefer to order over the phone?
Our team of experts is a phone call away!
Call us at 718-435-2800

Description

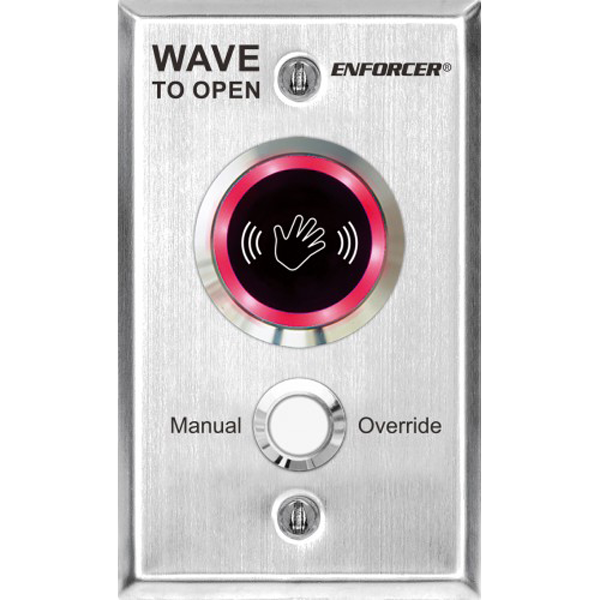

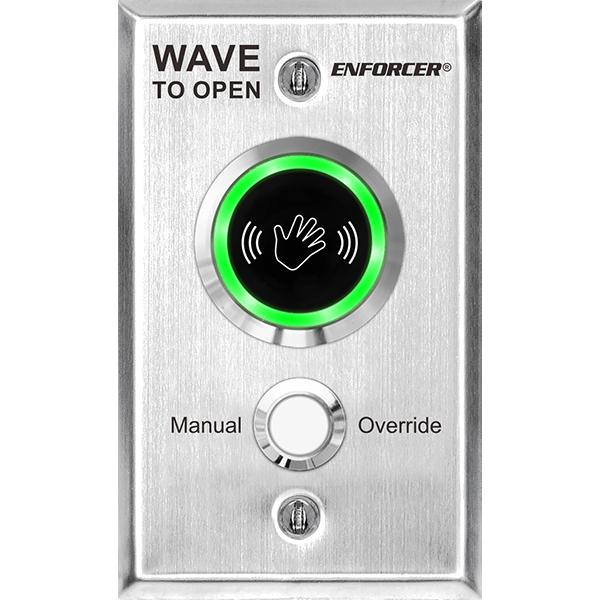

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

  • Conforms to UL294
  • Adjustable sensor range up to 7″ (18cm)
  • Stainless steel plate
  • Weatherproof (IP65) for outdoor use*
  • 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) to show sensor activated

​*when properly installed.



Specifications

Type “Wave-to-Open” Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use
Current Draw Standby – 16mA@12VDC / 25mA@24VDC, Triggered – 25mA@12VDC / 32mA@24VDC
Sensing Range 2″~7″ (5~18cm)
Operating Voltage 12~24 VDC
Reaction time 10mS
LEDs – Red Standby (Colors are reversible.)
LEDs – Green Triggered (Colors are reversible.)
Relay Type Form C dry contact, 1.2A@24VDC
Output Time 0.5~30 s, toggle
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2″ x 2-3/4″ x 1-1/2″ (115 x 70 x 39 mm)
Weight 125g
Enclosure Waterproof IP65



Troubleshooting

Sensor is triggering unintentionally.
  • ENFORCER Outdoor Wave-to-Open Sensors can be used either indoors or outdoors. However, due to infrared technology limitations, it is recommended that a hood or shield be used when installing outdoors to shield the sensor from direct light (sunlight, reflections from shiny objects, etc.). Direct light may cause the sensor to trigger unintentionally.
