Description

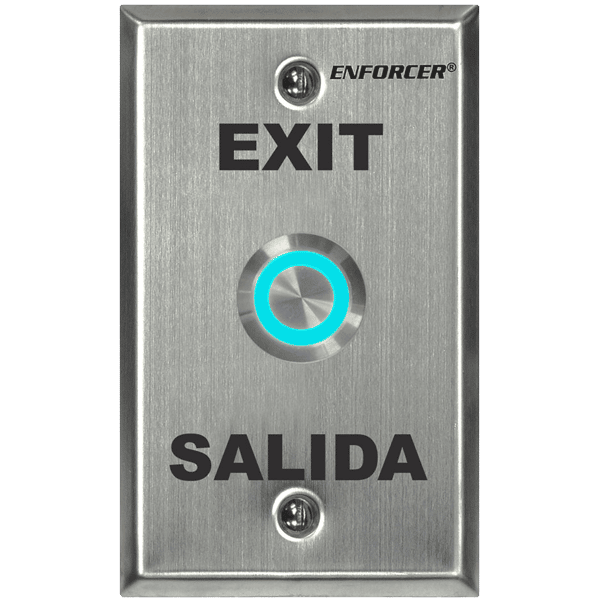

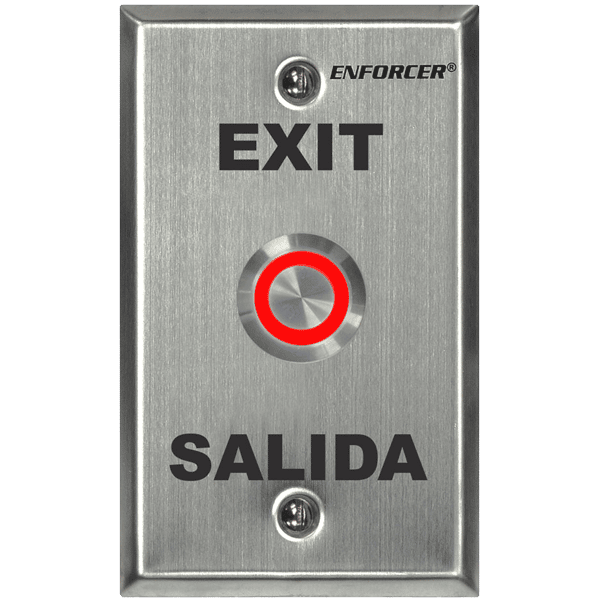

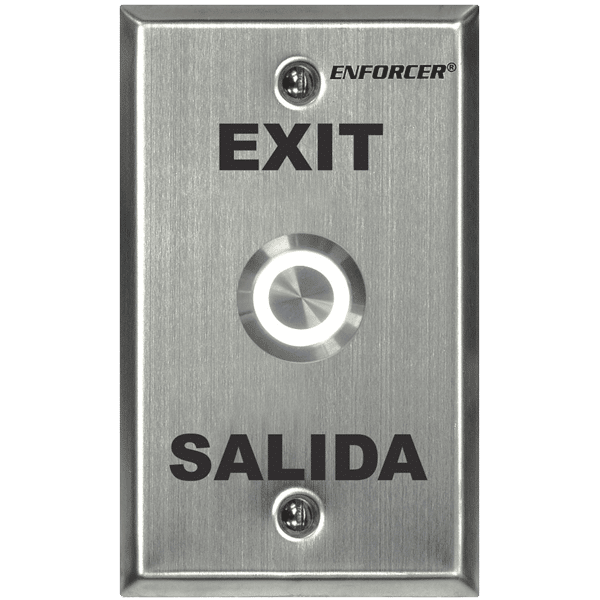

The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.
- Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
- 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
- Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
- NO/NC (DPST) switch
- Switch contact rating: 20A@24VAC / 1A@24VDC
- Switch is Weatherproof IP65 rated for outdoor use
- “EXIT” and “SALIDA” silk-screened on plate
- Slimline version also available (SD-7175SGEX1Q)
Specifications
| Faceplate | Brushed stainless, Single-gang |
| Button | Vandal resistant with multi-color circular perimeter LED |
| LED colors | Red, Green, Blue, Magenta, Yellow, Cyan, or White |
| Operating voltage | 12/24 VDC |
| Contact rating | 20A@24VAC / 1@24VDC |
| Electrical configuration | DPST |
| IP rating | Weatherproof IP65 |
| Operating temperature | -13°~131° F (-25°~55° C) |
| Dimensions | 2-3/4″x 4-1/2″x 1-3/16″ (70x114x30 mm) |
| Weight | 3.1-oz (88g) |
