Description

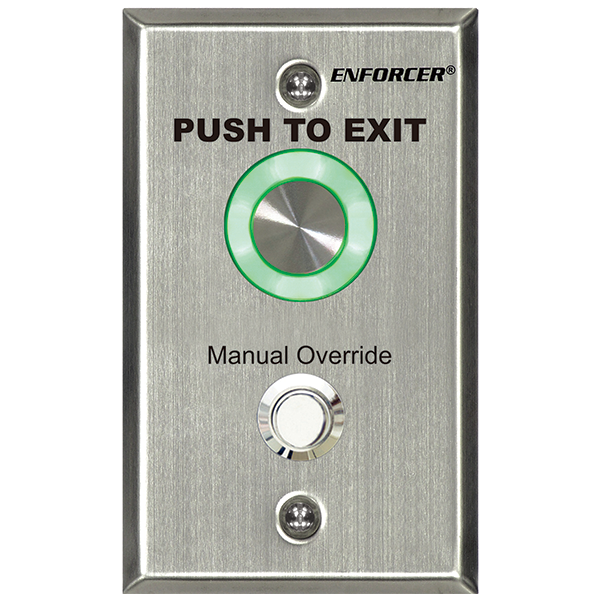

Programmable Red/Green Round Button, with Manual Override.
- Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
- No moving parts for heavy duty use
- LED ring around button changes from green to red or red to green when the button is pressed
- Timed or toggle output
- SD-6176-SSVQ and SD-6276-SSVQ include separate manual override button for use in case of a power failure to the pushbutton
- Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)
Specifications
| Type | RTE Plates with piezoelectric pushbuttons |
| Operating Voltage | 12~24 VDC |
| Current Draw | 100mA@12VDC |
| Contact Rating | 2.5@24VDC |
| Ring LED Default- Standby | Red |
| Ring LED Default- Active | Green |
| Output Time | 1~30 s, Toggle |
| IP Rating | Weatherproof IP65 |
| Operating Temperature | 32º~158º F (0º~70º C) |
| Material | Stainless steel |
| Weight | 4-oz (113g) |
