Description

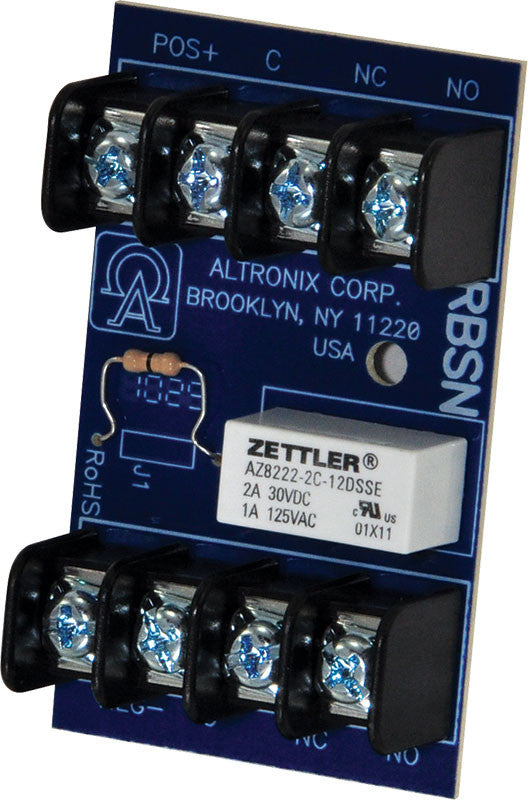

RBSN relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications:
-
Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 15mA.
-
Contact Rating
- 1A/120VAC or 2A/28VDC DPDT contacts.
-
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 1.8VA.
- 24VDC: 3.6VA.
Dimensions (approximate):
- 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.5 mm H).
Weights (approximate):
- Product Weight: 0.15 Lbs. (0.06 kg).
- Shipping Weight: 0.25 Lbs. (0.11 kg).
