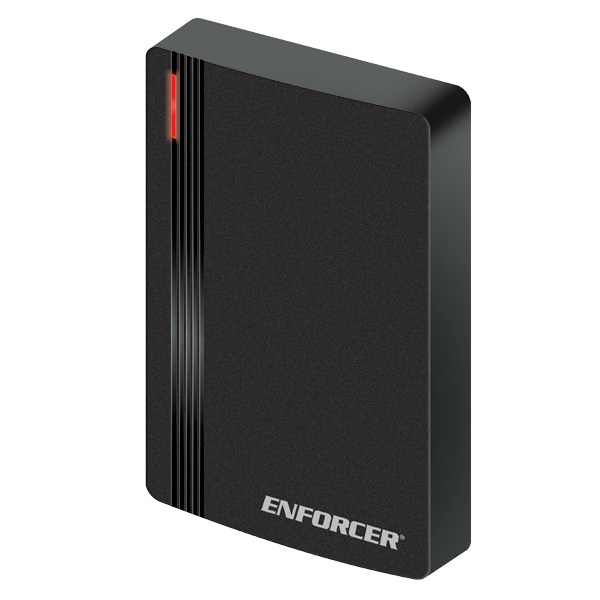

Description
• 1,000 Users (up to 998 users and 2 duress users)
• 9~24 VDC Operation with low current draw – 90mA max.
• Form C relay output – 2A@12VDC
• Adjustable output time – 0.5~99s, or toggle
• Built-in tamper alarm and external alarm output
• Multicolor status LED
• EEPROM Memory protects programmed information in case of power loss
• Includes remote programmer
• Egress input lets users exit the premises without using a card
• Can serve as either Wiegand reader or controller, both output and input are selectable from 26~37 bits
• Uses EM 125kHz cards – 10 User cards included
• 2-Door interlock
• Extreme cold tolerance to -40° F (-40° C)
• Epoxy-filled ABS plastic housing, Weatherproof (IP66)
• Easy duplication of users to additional devices
Specifications
| Operating Voltage | 9~24 VDC |
| Current Draw – Standby | 30mA@12VDC |
| Current Draw – Active | 90mA@12VDC (max.) |
| Outputs – Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2″ (0~5 cm) |
| IP Rating | Weatherproof IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 2-15/16″x4-3/4″x13/16″ (75x120x20 mm) |
| Weight | 6.5-oz (185g) |
Troubleshooting
| Unit fails to accept a new user/duress card |
|
| Unit fails to respond to a programmer user card |
|
