Description

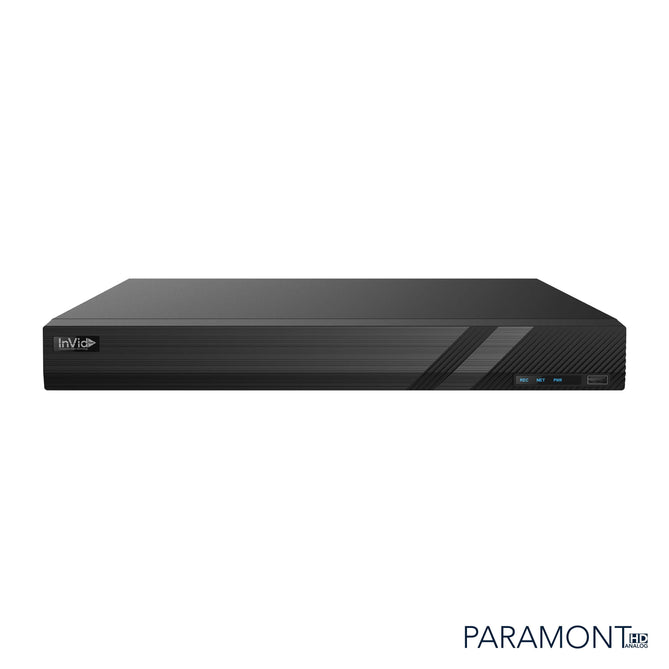

8 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (8 MP), with 8 Bonus IP Ch (8 MP), Up to 16 Cameras Total, 4K, 2 HD Bay
Features
- 8 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)
- TVI/AHD/CVI: 8MP, Analog: 960h, IP: 8MP
- 8 Bonus IP Channels - Up to 8 Megapixel
- Total Max IP Input: 16 (Including Bonus IPC)
- H.265/H.264 Video Compression
- True P2P Connectivity with QR Code Connect
- HDMI up to 4K
- Simultaneous HDMI/VGA up to 1080p Resolution
- CVBS Main or Spot Monitor
- Supports up to 8 Channel Simultaneous Playback
- Multiple video search options including Thumbnail Search for quick retrieval of footage. Smart Search (Bonus IPC channels only)
- Watermarking
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software to easily manage your system from your Apple computer
System |
|
|
OS |
Embedded Linux |
Video |
|
|
Analog Video Input |
BNC × 8 |
|
BNC interface (1.0Vp-p; 75Ω) |
|
|
TVI/AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) |
|
|
IP Video Input |
8CH Up to 8MP@30fps |
|
Total Input |
16CH |
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 BNC × 1 : CVBS ( used as the main or spot output ) |
|
Compression |
H.264/H.265 |
|
Multi-screen Display |
1/4/6/8/9/16 |
Audio |
|
|
Input |
RCA × 8 |
|
Output |
RCA × 1 (linear, 600Ω) |
|
Two-way audio |
Take up channel one audio input |
|
Compression |
G.711(U/A) |
Record |
|
|
Resolution |
4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1 |
|
Frame Rate |
Analog Channel: 4K@ 8fps (PAL/NTSC) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps/ 15fps (PAL / NTSC) 4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC) IP Channel: 8MP@ 25fps / 30fps (PAL / NTSC) |
|
Bit Rate |
32Kbps ~ 5Mbps |
|
Mode |
Manual, timed, motion, smart event |
Playback |
|
|
Playback |
8CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Alarm |
|
|
Mode |
Manual, motion, exception, smart event |
|
Input |
8CH |
|
Output |
2CH |
Network |
|
|
Interface |
RJ 45 1000Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
|
Incoming Bandwidth |
32Mbps |
|
Outgoing Bandwidth |
96Mbps |
|
Client Connection |
Max. 10 users access |
Mobile Device |
|
|
OS |
iOS, Andriod |
Storage |
|
|
HDD |
SATA× 2, up to 10TB per HDD; E-SATA× 1 (1TB Max, Archive Only) |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
Port |
|
|
RS 485 |
Yes (half-duplex), connect to PTZ |
|
USB |
USB 3.0 × 1; USB2.0 × 1 |
|
Remote Controller |
Included |
Others |
|
|
Power Supply |
DC12V / 4A |
|
Consumption |
≤ 15W ( without HDD ) |
|
Dimensions (W × D × H) |
15 x 10.6 x 1.8 in (380 × 268 × 45 mm ) |
|
Working Environment |
14°F ~122°F (-10~50°C), 10%~90% (humidity) |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Comply with Directive EU RoHS, WEEE, REACH |
