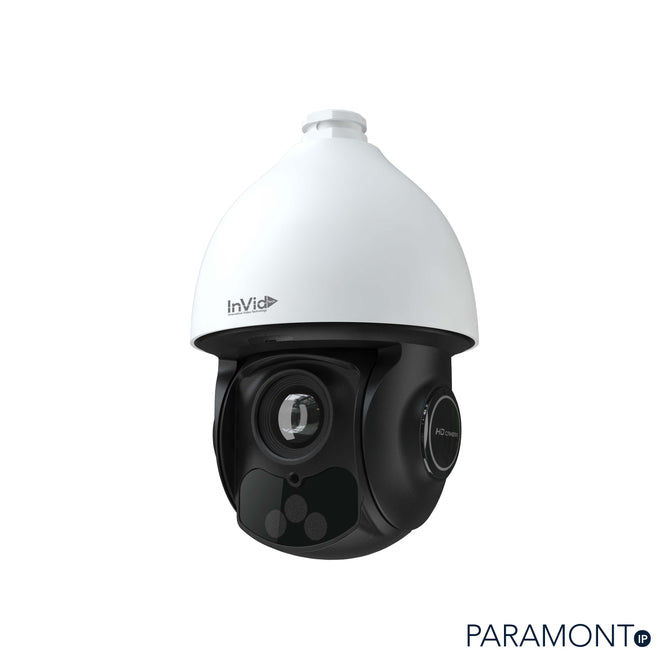

Invid PAR-P4PTZXIR25NH-AI 4 Megapixel IP Plug & Play, Outdoor PTZ

Camera Module

Image sensor

1/2.5" progressive scan CMOS

Mini. Illumination

Color: 0 OlLux@ (Fl.65, AGC ON); B/W: 0.002Lux@ (Fl.65, AGC ON); 0Lux with IR

Image setting

Saturation, Brightness, Contrast, Sharpness, AGC,

and AWB adjusted by client software/Browser

Shutter Speed

1/1s-1/10,000s

White Balance

Auto/Manual/Indoor/Outdoor

Gain

Auto/Manual

Day & Night

IR Cut filter

Privacy Mask

No

Image Enhancement

WDR, BLC, HLC, Electronic defog

Picture Overlay

Logo picture could be overlaid on video with 128×128pixels, 24bits BMP format

Lens

Focus length

f=4.8-120mm lens,25x optical zoom

Zoom Speed

Approx. 3.6s (optical zoom, wide-tele

Field of View

Horizontal: 55° ~2.4°  (wide-tele); Vertical: 35° ~ 1.4°  (wide-tele);

Diagonal: 61.5° ~ 2.8° (wide-tele)

Working distance

wide: l.0m ~ INF; tele: 1.5m ~ INF

Aperture Range

Fl.65 ~ F3.8 (wide-tele)

PTZ

Pan Range

360°endless

Pan speed

Configurable, from 0.1~80°/s; Preset speed: 120°/s

Tilt Range

From 0° to 90°

Tilt Speed

Configurable, from 0.1°~ 70°/s, Preset speed: 120°/s

Proportional Zoom

Yes

Preset

360

Cruise

8 cruises, up to 16 presets for each cruises

Track

4 tracks, record time over 3 minutes for each trace

Power off memory

Support

Action mode

Preset/Cruise/Track/Auto Scan/Random Scan

3D Positioning

Support

PTZ Position Display

Support

Schedule Task

Preset/Cruise/Track/Random Scan/Boundary Scanning /Dome reboot

IR

IR Distance

328 ft  (100m) with DC24CV/AC24V/PoE++(802.3.bt.class 5)

Smart IR

Yes, support facial exposure

Network

Max Resolution

2560 x l440

Main stream

2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720 (25/30fps)

Sub stream

25fps (1280×720, 704 × 576, 352 × 288); 30fps (1280×720, 704 × 480, 352 × 240)

Third Stream

25fps (704 × 576, 480 × 240, 352 × 288) 30fps (704 × 480, 480 × 240, 352 × 240)

SVC

Yes

Video compression

H.265/ H.264/MJPEG

Audio compression

G.711A/U

Audio Enhancement

No

Protocols

HTTP, HTTPS, IPv4/IPv6, 802.lx, QoS, FTP, SMTP, UPnP, SNMP,DNS, DONS,
NTP, RTSP, RTCP, RTP, TCP/IP, UDP, - IGMP, ICMP,DHCP, PPPoE

Simultaneous
 live view

Up to to 6 channels

User/ Host

Up to 16 users, 3 levels: Administrator, Advanced User and

Normal User

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption, IEEE802.1x port-based network access control;  IP address filtering

Smart Features

Basic Event

From 2MP PTZ

Smart Detection

Line crossing, intrusion Region Entrance Target/Exit Counting  (human/vehicle classification)

Exception detection

Scene change, video blur

Smart Tracking

Manual Tracking (PTZ Control), Auto Tracking By Human or Vehicle Classification

System Integration

Alarm Interface

 1 Alarm input; 1 Alarm output

Audio Interface

1 audio input(MIC in); 1 audio output, line level, impedance,600Ω

Alarm Linkage

Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record,
Trigger Recording, Upload to FTP/Memory Card, Send Email, etc.

Network Interface

1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.bt,class 5)

SD Card Slot

One MicroSD/SDHC/SDXC card slot, up to 256G

API

ONVIF, Profile S support SDK and third-party management platform

Client

Paramont NVR1.4.5, Paramont CMS AI

Web Browser

 IE8-11

General

Power

DC24V,AC24V or PoE++ (802.3.bt, class 6), (Max 34W, include IR, Heater, Fan working,
max 12W for IR)

Working condition

-22°F ~ 140°F (-30°C ~ 60°C),90%RH less (non-condensing),

Cold start at - 25°C

Storage condition

-40°F ~ 149°F (-40°C ~ 65°C) ; ≤ 95% RH

Protection

 IP66, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Material

Aluminum Alloy + Plastic

Dimensions

Φ 7.7 inch × 12.5 in  (Φ196mm × 317mm)

Weight

Approx. 8.31 lb ( 3.7 Kg.)

Certification

 IP66,ROHS,CE,FC
