Description

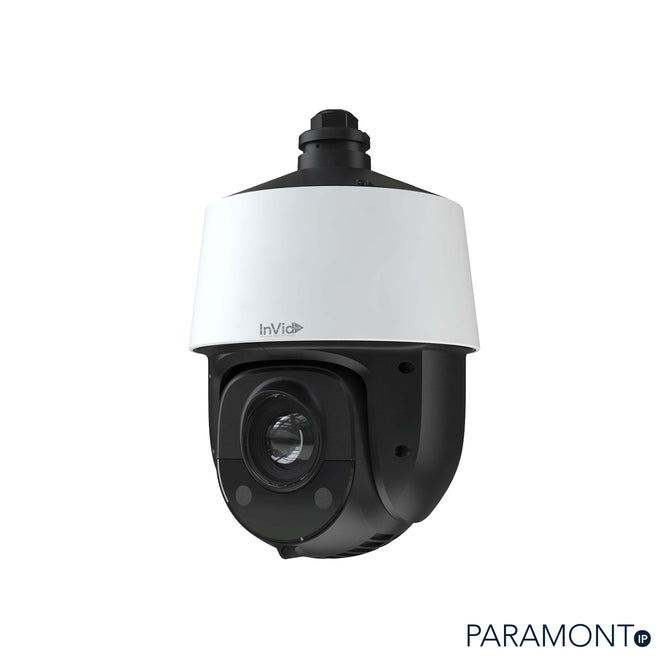

2 Megapixel IP Plug & Play, Outdoor PTZ, 25x Zoom, up to 492 IR Range, WDR, SD Card Slot, 12VDC/PoE+
Features
- 2 Megapixel Resolution
- Supports Smart Tracking Based off AI Events
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- True Day/Night with IR Range up to 492’
- H.265+,H.265,H.264+,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR
- Smart Analytics
- Micro SD Slot: Up to 256GB
- IP66 Weather Resistant
- 12VDC/PoE+ Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Module |
PAR-P2PTZXIR25-AI |
|
Image sensor |
1/2.8 progressive scan CMOS |
|
Mini. Illumination |
Color 0.005Lux @ (F1.65 AGC ON) B/W 0.001Lux @(F1.65 AGC ON); 0Lux with IR |
|
Image setting |
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB |
|
Shutter Speed |
1/1 s – 1/10,000 s |
|
White Balance |
Auto/Manual/Indoor/Outdoor |
|
Gain |
Auto/Manual |
|
Day & Night |
IR Cut filter |
|
Digital Zoom |
16x |
|
Privacy Mask |
4 Programmable privacy masks |
|
3D DNR |
Auto/Manual |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
Defog |
Electronic |
|
EIS |
Yes |
|
Regional Exposure |
No |
Lens |
|
|
Focus length |
f=4.8-120mm lens,25x optical |
|
Zoom Speed |
Approx. 3.6s (optical zoom, wide-tele) |
|
Field of View |
Horizontal:57.6°to 2.5°(wide -tele) Vertical: 34.4°to 1.4°(wide -tele) Diagonal: 64.5°to 2.9°(wide -tele) |
|
Working distance |
wide: 1.0m ~ INF; tele: 1.5m ~ INF |
|
Aperture Range |
F1.65 ~ F3.8 (wide-tele) |
PTZ |
|
|
Pan Range |
360°endless |
|
Pan speed |
Configurable, from 0.1~80°/s; Preset speed: 80°/s |
|
Tilt Range |
From -5°to 90° |
|
Tilt Speed |
Configurable, from 0.1°~ 80°/s, Preset speed: 80°/s |
|
Proportional Zoom |
Yes |
|
Preset |
360 |
|
Cruise |
8 cruises, up to 16 presets for each cruises |
|
Trace |
4 traces, record time over 3 minutes for each trace |
|
Power off memory |
Support |
|
Action mode |
Preset/Cruise/Track/Auto Scan/Random Scan |
|
3D Positioning |
Support |
|
PTZ Position Display |
Support |
|
Schedule Task |
Preset/Cruise/Track/Random Scan/Boundary Scanning /Dome reboot |
IR |
|
|
IR Distance |
492 ft |
|
Smart IR |
Yes, Support Facial Exposure |
Network |
|
|
Max Resolution |
1920x1080 |
|
Main stream |
1920x1080,1280x960,1280x720 25/30fps |
|
Sub stream |
25fps (704 × 576, 640 × 480, 352 × 288); 30fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
SVC |
Yes |
|
Video compression |
H.265+/ H.265 / H.264+/ H.264 /MJPEG |
|
Audio Enhancement |
No |
|
Protocols |
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP,IGMP, ICMP,DHCP, PPPoE |
|
Simultaneous live view |
Up to 6 channels |
|
User / Host |
Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
Smart Features |
|
|
Basic event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) , defocus detection |
|
Face Recognition |
Default off, max 15 human faces per second. (NVR Side) |
|
Face Recognition Camera |
Default off/ Camera Side, Face Database of 10,000 Faces |
|
People Density |
Not support by this version |
|
Smart Detection |
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Target Counting, Scene change detection, Support alarm triggering by human or vehicle, filtering flag/animal. |
|
Smart Tracking |
Manual Tracking,(PTZ Control) Auto Tracking by human or vehicle Classification |
System Integration |
|
|
Alarm Interface |
None |
|
Audio Interface |
None |
|
Alarm Linkage |
Alarm actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance Center,Upload to FTP/Memory Card, Send Email, etc. |
|
Network Interface |
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at) |
|
CVBS |
None |
|
RS 485 |
None |
|
SD Card Slot |
On-Body memory card slot, support microSD/SDHC/SDXC, up to 256G |
|
API |
ONVIF Profile S, Supports SDK, and Third-Party Management Platform |
|
Client |
Paramont CMS APP / Paramont CMS AI TSS |
|
Web Browser |
IE8-11 |
General |
|
|
Power |
DC12V or PoE+ (802.3.at, class 3), (Max 22W, include IR on, Heater on, Fan working) |
|
Working condition |
-22°F ~ 131°F (-30°C ~ 55°C),90%RH less (non -condensing), Cold start at - 4°F |
|
Storage condition |
-40°F~ 149°F (-40°C ~ 65°C) ; ≤ 95% RH |
|
Protection |
IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Material |
Aluminum Alloy;PC+GF10% |
|
Dimensions |
6.8” Φ × 9.7” (Φ 173mm × 247mm) |
|
Weight |
Approx. 13.22 lb ( 2.1 Kg) |
|
Certification |
IP66,ROHS,CE,FC |
