Description

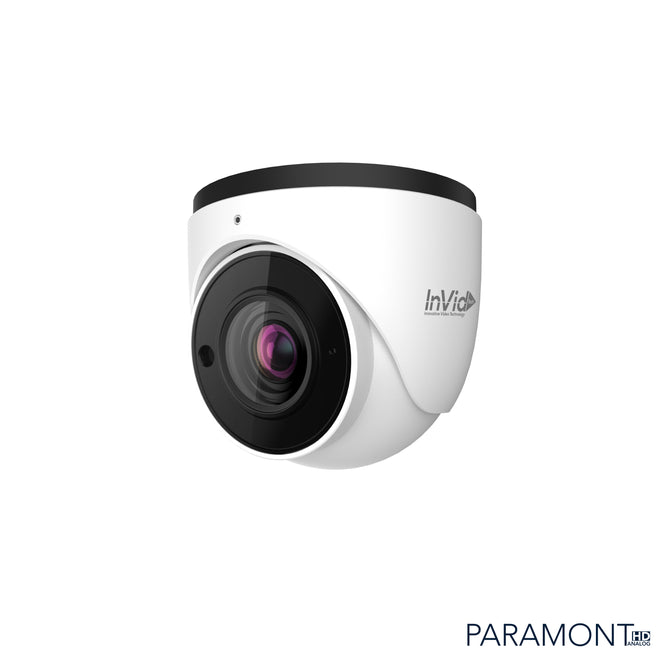

8 Megapixel, TVI/AHD/CVI/CVBS, Outdoor Turret, 65’ IR Range, 12VDC
Features
- 8 Megapixel Resolution (3840 x 2160)
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Fixed Lens
- True Day/Night
- D-WDR
- Up The Cable (UTC) Function
- IP66 Weather Resistant
- 12VDC Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
|
Camera |
PAR-C8TIR28 |
|
Image Censor |
1 / 2.5 “CMOS |
|
Resolution |
8MP/5MP/4MP |
|
Image Size |
3840 x 2160 |
|
Video Output |
AHD / TVI /CVI/CVBS |
|
Image System |
PAL / NTSC |
|
Electronic Shutter |
Auto |
|
IR Distance |
65 ft. |
|
Frame Rate |
8MP @15fps, 5MP @20fps, 4MP @ 30FPS |
|
Min. Illumination |
Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
|
Lens |
2.8 mm |
|
Lens FOV |
2.8mm: 112.4° H, 80° V, 119.5° Crossline |
|
Lens Mount |
M12 |
|
S/N Ration |
≥52dB ( AGC OFF ) |
|
Ingress Protection |
IP66 |
|
Functions |
|
|
Function Control |
OSD (UTC Control) |
|
Day & Night |
ICR |
|
Digital WDR |
Yes |
|
Digital NR |
Yes |
|
Auto White Balance |
Yes |
|
BLC |
Yes |
|
HLC |
Yes |
|
Sharpness |
Yes |
|
Mirror Image |
Yes |
|
Smart IR |
Yes |
|
Image Setting |
Yes |
|
Defect Correction |
Auto |
|
Language |
11 languages |
|
Angle Adjustment |
Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
|
Others |
|
|
Power Supply |
DC12V ( ±15% ) |
|
Power Consumption |
IR OFF : < 2W; IR ON : < 4W |
|
Working Environment |
-22°F ~ 122°F (-30 °C ~ 50 °C), 10 % ~ 90 % (relative humidity) |
|
Dimensions |
7 x 3.5 lbs (180 x 91.4 mm) |
|
Weight |
Approx. 0.8 lbs (0.36KG) |
