Description

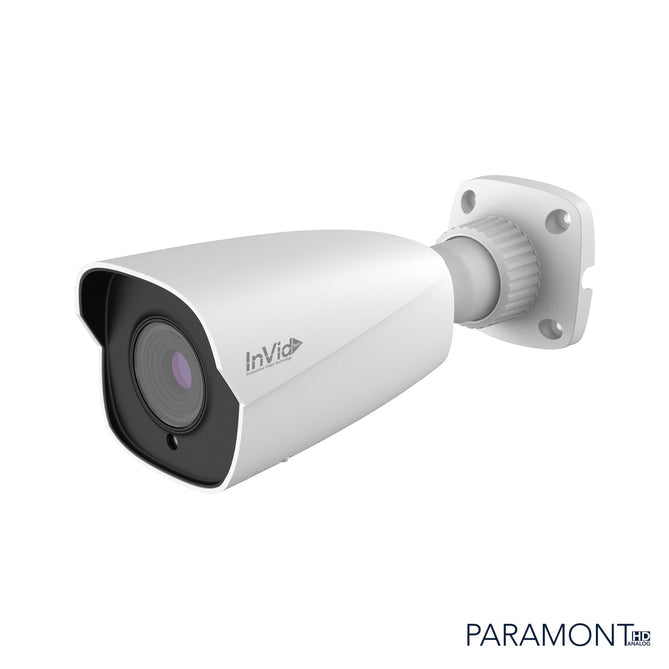

5 Megapixel, Motorized Autofocus 2.8-12mm Lens, TVI/AHD/CVI/ Analog 960h, 164’ Smart IR Range, True Day/Night, D-WDR, 12VDC Operation
Features
- 5 Megapixel Resolution (2592 x 1944)
- Motorized Auto-Focus 2.8-12mm Lens
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- 164’ Smart IR Range
- True Day/Night
- D-WDR
- Up The Cable (UTC) Function
- IP67 Weatherproof
- 12VDC Operation
|
Camera |
PAR-C5BIRA2812 |
|
Image Censor |
1 / 2.7 “CMOS |
|
Resolution |
5MP/4MP |
|
Image Size |
2592 x 1944 |
|
Video Output |
AHD / TVI /CVI/CVBS |
|
Image System |
PAL / NTSC |
|
Electronic Shutter |
Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC ) |
|
IR Distance |
164 ft. |
|
Frame Rate |
5MP @20fps, 4MP @30fps |
|
Min. Illumination |
Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
|
Lens |
2.8-12mm Automatic Focusing And Motorized Zoom Lens |
|
Lens FOV |
2.8-12mm 91.2°-33.4° H, 75°-25.4° V, 108°-41.2° Crossline |
|
Lens Mount |
M12 |
|
S/N Ration |
≥52dB ( AGC OFF ) |
|
Ingress Protection |
IP67 |
|
Functions |
|
|
Function Control |
OSD (UTC Control) |
|
Day & Night |
ICR |
|
Digital WDR |
Yes |
|
Digital NR |
Yes |
|
AGC |
Yes |
|
Auto White Balance |
Yes |
|
BLC |
Yes |
|
Front light compensation |
Yes |
|
HLC |
Yes |
|
Sharpness |
Yes |
|
Mirror Image |
Yes |
|
Smart IR |
Yes |
|
Image Setting |
Yes |
|
Defect Correction |
Auto / Manual |
|
Language |
13 languages |
|
Angle Adjustment |
Pan: 0°~350°; Tilt: 0°~90°; Rotation: 0°~360° |
|
Others |
|
|
Power Supply |
DC12V ( ± 10% ) |
|
Power Consumption |
IR OFF : < 1W; IR ON : < 4W |
|
Working Environment |
-30°F ~ 122°F(-30 °C ~ 50 °C), 10 % ~ 90 % (relative humidity) |
|
Dimensions ( mm ) |
219.4 x 86.7 |
|
Weight ( net ) |
Approx. 0.58KG |
