Description

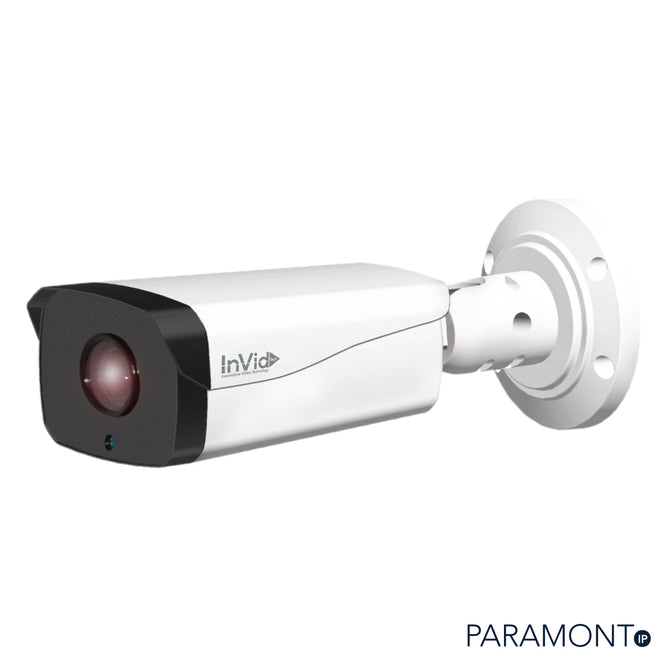

5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS, Outdoor Long Range Bullet, Motorized AF 6-50mm Lens, 361’ IR Range, True WDR, Dual Voltage
Features- 5-2 Megapixel Field Selectable**,Sony Sensor and Korea Eyenix DSP
- All-in-One Technology (TVI/AHD/CVI/Analog 960h),
- Motorized AF 6-50mm lens
- True Day/Night
- True WDR
- 361’ Smart IR Range
- Built-in OSD Board, Built-in Dip Switch, Built-in Optional Video Output
- Up The Cable (UTC) Function
- IP67 Weatherproof
- Dual Voltage
- Through InVid Tech DVR: Free App, CMS & MAC Client
*Scale down to other resolutions via camera dip switches & OSD
Camera |
|
Filter |
Removable IR Cut Filter |
Image Sensor |
1/2.8” 5Mega-pixel Sony CMOS |
Pixels |
Total: 2704(H)*2104(V), Effective: 2616(H)*1964(V) |
Video Output |
TVI:5MP 20/12.5 FPS, 4MP/2MP 30/25 FPS AHD:5MP 20/12.5 FPS, 4 MP / 2MP 30/25 FPS CVI:4MP 30/25 FPS, 2 MP 30/25 FPS CVBS” |
Video Output By Default |
TVI: 5MP @ 20 FPS AHD:5MP @ 30 FPS CVI: 4MP @ 30 FPS CVBS” |
Min Illumination |
0Lux(12PCs led ON) |
Vertical Frequency |
NTSC:60Hz PAL:50Hz |
IR Range |
361 Feet |
S/N Ratio |
≥56DB(AGC OFF) |
Lens |
Motorized AF 6-50mm IR Lens |
Viewing Angle |
Horizontal: 53-9 Degree |
White Balance |
AUTO/AUTO EXT/PRESET/MANUAL |
BackLight Compensation |
OFF/BLC |
HLC |
OFF/HLC |
Day&Night |
AUTO/COLOR/B&W/EXTERN |
OSD |
Support (Built-in) |
AUTO Gain Control |
ON (Default), 0-20 steps |
SENSE-UP |
OFF/x2/x4/x8/x16/x32 |
3DNR |
AUTO |
True WDR |
Default OFF ( ≥120DB) |
Auto Exposure Mode |
AUTO/MANUAL/FLICKER |
Mirror |
OFF/Low/Middle/High |
Flip |
OFF/ON |
Motion |
0-10 steps |
Privacy Mask |
16 masks |
Defog |
OFF/ON, Low/Middle/High |
General |
|
Power Supply |
Dual Voltage |
Current Consumption |
DC12V:1400mA(MAX)/AC24V:400mA(Max) |
IP Rating |
IP67 |
Dimension |
11.0”×4.4×3.2” (280×111×81mm) |
Weight |
2.4lbs (1100g) |
Storage Temperature |
-22 °F +149 °F (-30℃+65℃) |
Operating Temperature |
-22 °F+122 °F (-30℃+50℃) |
