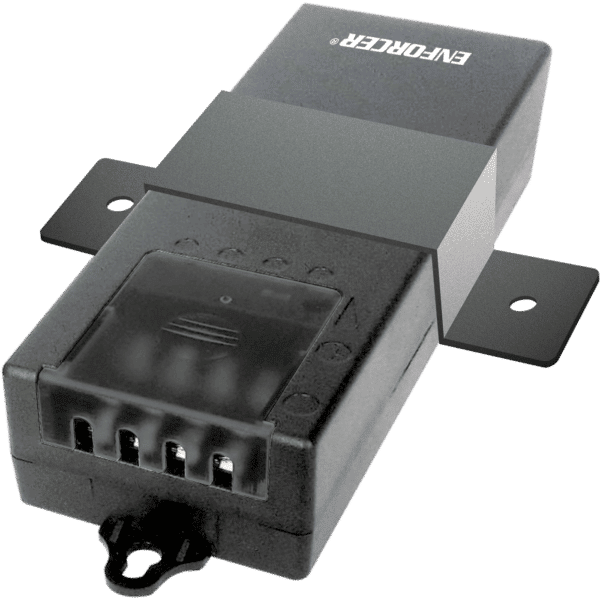

Seco-Larm PA-U0405-NULQ 4-Channel CCTV ‘Brick’ Power Supply – 4 Outputs, 5 Amp Total Supply Current
Roll over image to zoom in Click on image to zoom
Seco-Larm PA-U0405-NULQ 4-Channel CCTV ‘Brick’ Power Supply – 4 Outputs, 5 Amp Total Supply Current

Authorized Seco-Larm Reseller

Seco-Larm PA-U0405-NULQ 4-Channel CCTV ‘Brick’ Power Supply – 4 Outputs, 5 Amp Total Supply Current

Seco-LarmSKU: PA-U0405-NULQ
Our offices will be closed April 22-30th
Please expect slight shipping delays. Questions? Chat with us below
Price:
$25.42
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The PA-U0405-NULQ is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.

  • 4-Channel, 5-Amp power distribution
  • Can be mounted with the bracket for easy access and reduced power cord clutter
  • Universal input voltage: 100~240 VAC
  • Adjustable output voltage: 12~13.8 VDC
  • Built-in 6.8-Amp overcurrent protection
  • High voltage and overcurrent protection
  • LED Power indicator



Specifications

Input Voltage 100~240VAC
Max. Output power 60W
Output Voltage 12~13.8 VDC, adjustable
Number of Outputs 4
Total Supply Current 5 Amp
Input fuse 3.15A@250VAC
Overcurrent Protection 12VDC / 6.8A
Dimensions 5-7/8″ x 2-3/16″ x 1-5/16″ (150 x 55 x 33 mm)
Weight 13.4-oz (380g)
Operating Temperature 14º~113º F (-10º~45º C)



Troubleshooting

Camera will not turn on
  • Make sure that all wires are connected securely and that the polarity is correct
No output power from power supply
  • Check to see that the main power cable is securely connected to the AC wall socket
  • Make sure that the AC wall socket is powered
  • Check LED indicators on power supply to ensure
    that input power is being received
  • Check the total supply current for all connected
    device does not exceed 5A
