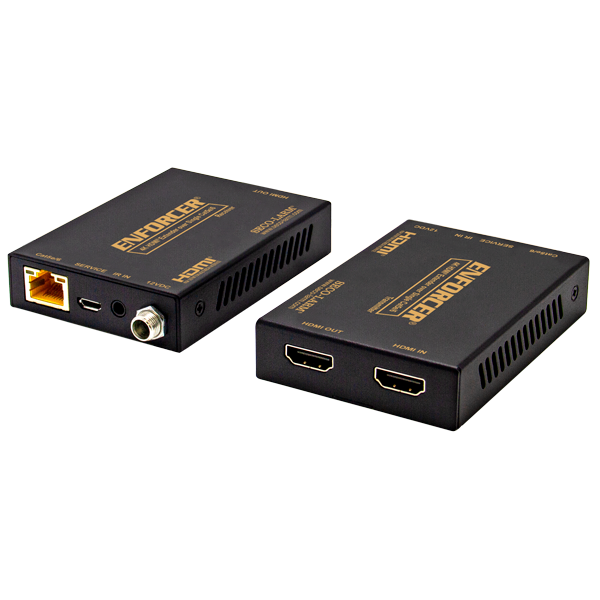

Seco-Larm MVE-AH1E1-42NQ 4K HDMI Extender over Single Cat5e/6
Roll over image to zoom in Click on image to zoom
Seco-Larm MVE-AH1E1-42NQ 4K HDMI Extender over Single Cat5e/6

Authorized Seco-Larm Reseller

Seco-Larm MVE-AH1E1-42NQ 4K HDMI Extender over Single Cat5e/6

Seco-LarmSKU: MVE-AH1E1-42NQ
Price:
$120.15
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The ENFORCER 4K HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6. HDMI formats as large as 4K can be transmitted up to 197ft (60m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter.

  • Extends HDMI over a single Cat5e/6 cable
  • Supports resolutions from 480i to 4K with zero signal loss
  • Transmits 4K@60Hz up to 197′ (60m) or 1080p@60Hz up to 230′ (70m) over Cat6 cable
  • Plug and play operation
  • Active operation ensures signal strength
  • IR for remote control extension
  • One (1) 12VDC power supply included – set can be powered at either end



Specifications

Maximum Single Link Range 4K@60Hz
Deep Color 8bit
Video Format Supported High-speed HDMI, HDCP 2.2
Audio Formats Supported LPCM 2/51/7.CH, Dolby Digital, DTS 5.1, Dolby Digital+, DolbyTrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Output Video 4K@60Hz
Resolutions Supported 4K@60Hz/4K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
Range 1080p: Cat6: Up to 230′ (70m); Cat5e: Up to 164′ (50m)
Range – 4K Cat6@60Hz: Up to 197′ (60m); Cat5e@60Hz: Up to 164′ (50m)
Video Amplifier Bandwidth 18Gbps
Video Input Connector HDMI Type A 19-pin female
Video Output Connector HDMI Type A 19-pin female
IR Frequency 30 ~ 60 kHz
Power Supply 1A@12VDC (1 Adapter) (2.1mm plug)
ESD Protection (Human Body Model) ±8kV (air-gap discharge), ±4kV (contact discharge)
Cat5e/6 Wiring Standard T-568B
Operating Temperature 32°~104° F (0°~40° C)
Operating Humidity 20~90% RH (no condensation)
Dimensions 3-7/16″x23 / 8″x11/16″ (88x61x17 mm)
Weight 5.08-oz (144g) (each)



Troubleshooting

HDMI device does not function correctly
  • Use T-568B wiring standard
  • Make sure the extender is powered
  • Make sure the source and the display are powered
  • Test the Cat5e/6 cable between the receiver and transmitter and make sure it is functional
  • Make sure that there are no problems with the HDMI source, HDMI cables, or HDMI display by plugging the source directly into the display using an HDMI cable
Screen flickering or brief image loss
  • Use a higher grade of twisted pair category cable (Cat6 is recommended)
  • Switch the source device to a lower HDMI output (i.e., 4K@60Hz to 1080p)
  • Restart the handshake process by powering everything down then powering up and connecting each device in succession starting with the HDMI source
