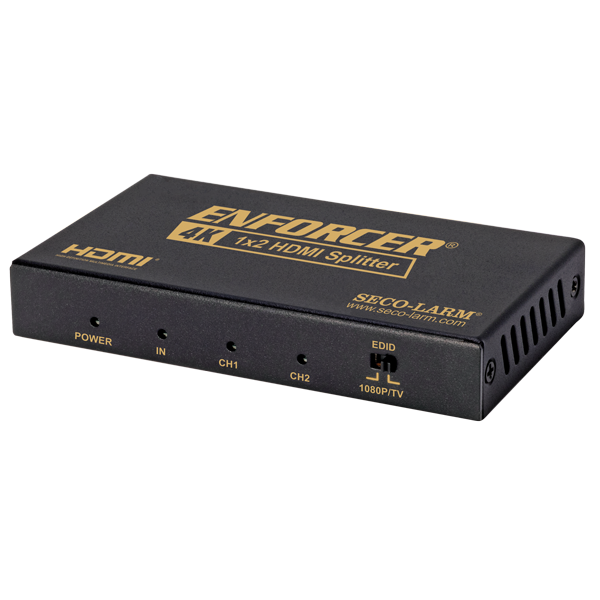

Seco-Larm MVD-AH12-01Q HDMI 4K Splitter – 2 HDMI Outputs

Seco-LarmSKU: MVD-AH12-01Q

Price:
Sale price$27.72
Stock:
Usually ships within 3-5 business days

Prefer to order over the phone?
Our team of experts is a phone call away!
Call us at 718-435-2800

Description

The ENFORCER 4K HDMI Splitters allow for one HDMI source to simultaneously transmit to up to four different monitors. The splitters work with most HDMI devices, delivering the very best in digital audio and video signals with HD resolutions of up to 4K@60Hz. An LED indicator clearly displays power status as well as which outputs are active. The 4K HDMI Splitters can be daisy chained up to four levels for even more outputs.

IMPORTANT: This product is designed to extend an HDMI® signal. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with the content.

  • Transmits an HDMI source to up to two different HDMI displays
  • Additional splitters can be daisy-chained for more outputs
  • HDR Support
  • Supports up to 4K@60Hz resolution and 3D video
  • Individual status LEDs for each HDMI output
  • Two EDID management settings
  • One 5VDC power supply included



Specifications

Type 4K HDMI® Splitter
Maximum Single Link Range 4K*2K@60hz
Deep Color 24bit RBG/YCBCR 4:4:4
Video Formats Supported HDMI 2.0b, HDCP 2.2
Audio Formats Supported LPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
Output Video HDMI®
HDR Support Yes
Resolutions Supported 4K/1080p/1080i/720p/576p/576i/480p/480i
Video Amplifier Bandwidth 600MHz/18Gbps
Video Input Connector 1x HDMI® Type A 19-pin female
Max. Input Cable Length 24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m)
Video Output Connector 2x HDMI® Type A 19-pin female
Max. Output Cable Length 24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m)
Operating Voltage 5VDC
Power Supply 1A@5VDC (2.1mm plug)
ESD Protection ±8kV (air-gap discharge), ±4kV (contact discharge)
Current Draw 2W
Operating Temperature 32°~104° F (0°~40° C)
Operating Humidity 20~90% RH (no condensation)
Dimensions 2-3/16″x3-15/16″x5/8″ (56x100x16 mm)
Weight 6-oz (165g)



Troubleshooting

HDMI device does not function correctly
  • Make sure the splitter is powered.
  • Make sure the source and display(s) are powered.
  • Make sure that there are no problems with the HDMI source, HDMI cables, or HDMI display(s) by plugging a source directly into the display using the HDMI cables.
  • Make sure that the source and display(s) are plugged in to the correct connectors.
  • Make sure the HDMI source is compatible with the HDMI display(s).
  • Make sure the HDMI input and output cables are used within the specified range (see Specifications).
