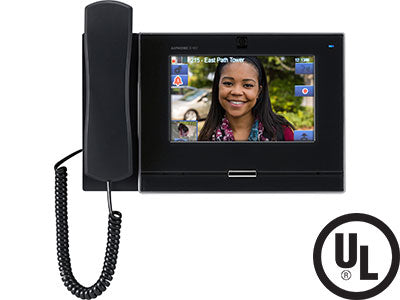

Aiphone IX-MV7-HB Touchscreen Master Station with Handset for the IX Series

The IX-MV7-HB is an IP addressable hands-free or handset master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included).

Need this station with UL Certification? Be sure your model has a UL sticker or contact Aiphone for more details.

FEATURES

• SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
• ONVIF® Profile S Compliant
• 802.3af PoE, Class 0
• 7″ TFT LCD touchscreen
• Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
• Hands-free or push-to-talk communication
• 8 customizable speed dial buttons
• Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
• 2 contact outputs, 4 trigger inputs
• 8Ω 1/2 watt speaker output provides better coverage for announcements
• 600Ω audio input.
• 2-year warranty!

SPECS
Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 4.32 Watts
Camera: ⅓" CMOS 720p
Min. illumination: 5 Lux
Audio Codec: G.711 (μ-law, A law), G.722
Video Codec: H.264/AVC, Motion JPEG

Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS

Port Security: IEEE 802.1X
Operating Temp: 32° - 104°F (0° - 40°C)
Dimensions: 8-1⁄16" H x 11" W x 2-3⁄16" D
Mounting: Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
