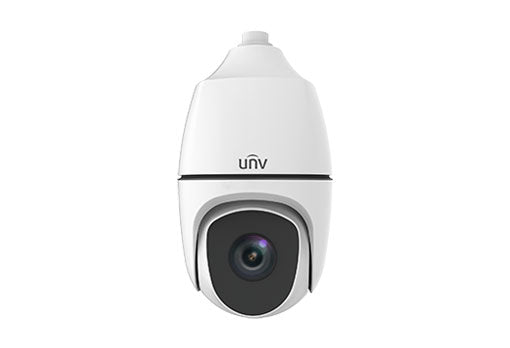

Uniview IPC6854ER-X40-VF 4MP 40X Lighthunter IR Network PTZ Dome Camera

UNVSKU: IPC6854ER-X40-VF

Price:
Sale price$5,049.00
Stock:
Usually ships within 3-5 business days

Pickup available at Brooklyn

Usually ready in 24 hours

Our team of experts is a phone call away!
Call us at 718-435-2800

Description

• High quality image with 4MP,1/1.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 40X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 250m (820ft) IR distance
• AC 24V ±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
• Alarm 7 in and 2 out, Audio 1 in and 1 out


Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.0005Lux (F1.2, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 40
Iris Auto; F1.2 ~ F4.6
Field of View (H) 59.5° ~ 2.2°
Field of View (V) 35.6° ~ 1.2°
Field of View (D) 73.1° ~ 2.6°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
5.7 107.2(351.8ft) 42.9(140.7ft) 21.4(70.4ft) 10.7(35.2ft)
228 3330.6(10927.2ft) 1332.2(4370.9ft) 666.1(2185.4ft) 333.1(1092.7ft)
Illuminator
IR Range Up to 250m (820 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIS Support
HLC Support
BLC Support
Defog Optical Defog & Digital Defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
People Counting Support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 180°/s
Preset speed: 300°/s
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed 0.1°/s ~ 180°/s
Preset speed: 240°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze Support
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 7/2
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1*10M/100M Base-TX Ethernet
Video output N/A
Certification
EMC CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power AC 24V ±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
Power consumption: Max 61W
Power Interface Wires with cold-pressed terminal
Dimensions (Ø x H) Φ270 x 497mm (Φ10.6” x 19.6”)
Weight 9.69kg(21.36lb)
Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Reset Button Support
