Invid INVID-IPOVERCOAX IP Over Coax Passive Converters

InvidSKU: INVID-IPOVERCOAX

Price:
Sale price$120.56
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

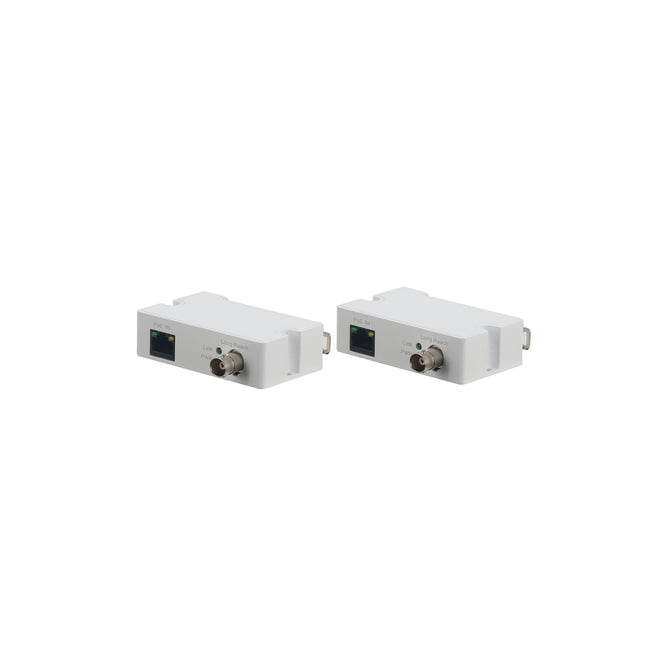

IP Over Coax Passive Converters (Includes INVID-IPOVERCOAX-RX & INVID-IPOVERCOAX-TX)

Features

  • IP Video & Audio & Data & POE Power transmission over coaxial cable
  • Passive design, no power adapter is required
  • Max 1000 meters (3000ft) transmission
  • Up to 100Mbps bandwidth over 1,000 feet regular coax cable transmission, working with CCA/CCU RG59/RG6 cable
  • Plug-and-play, configuration free
  • Small size (3.1“x2.0”x0.9“), light weight, fit into regular camera back box

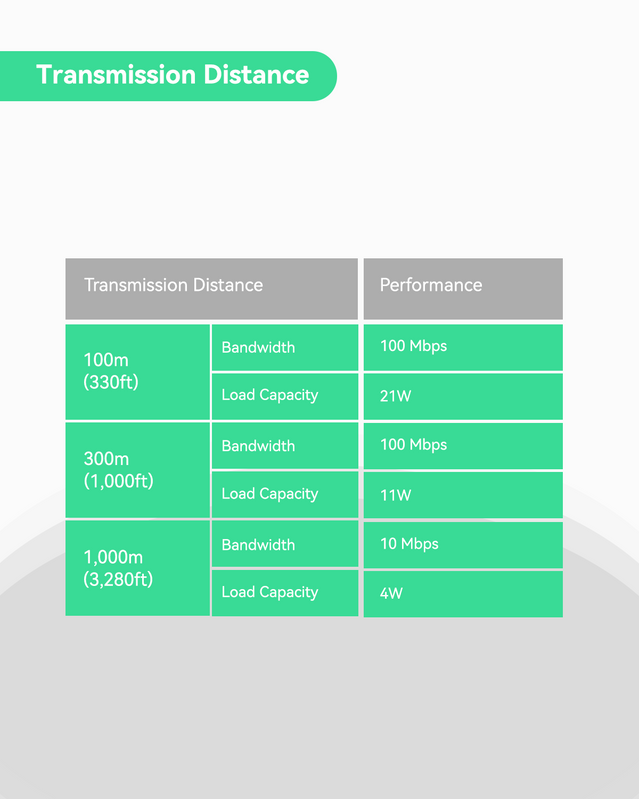

  • Compatible to IEEE802.3af/IEEE802.3at POE protocol, max 21W POE load capacity in 330ft (100m), or 11W POE load capacity in 1000ft (300m)

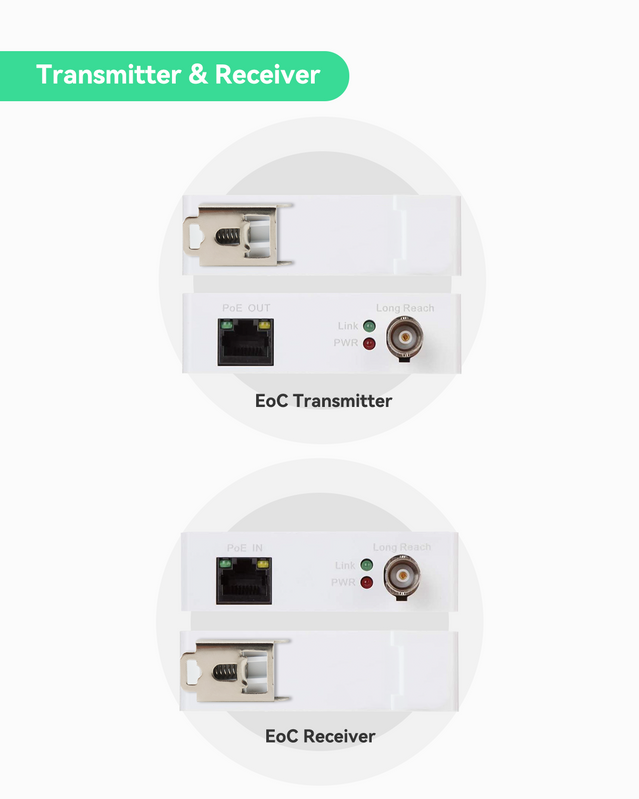

  • Interface: 1*RJ45 10/100Mbps, 1*BNC RG59 coaxial
  • Perfect to upgrade analog system to IP surveillance system
  • Works with all InVid Tech and other PoE IP Cameras
  • Recommended to connect to network switches for use. Not all NVR PnP ports will recognize the EoC (Ethernet over Coax) adapter

Model

INVID-IPOVERCOAX-TX
INVID-IPOVERCOAX-RX

Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps

PoE Protocol

IEEE802 3af, IEEE802 3at

Network Standard

IEEE802 3, IEEE802 3u, IEEE802 3x

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Operating Temperature

-22° ~ 149° F (-30° ~ 65° C)

Operating Humidity

5-95%

Weight

0.13 lbs (61g)

Dimensions (WxDxH)

3.11 x 2.04 x .9” (79 x 52 x 23mm)
