Description

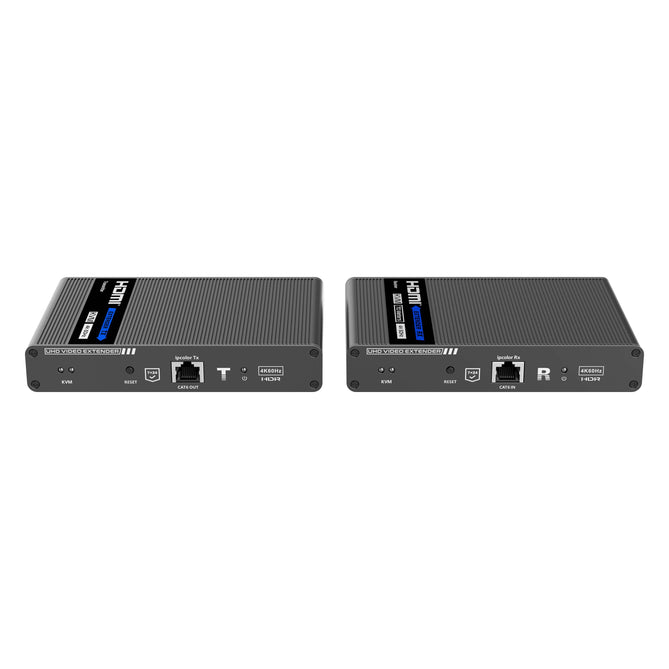

230 Feet (70M) 4K@60Hz (4:4:4/4:4:2) 18Gbps HDMI KVM Extender over CAT6/6A/7 with IR, HDR, KVM control, ARC, S/PDIF port, HDMI loop-out on TX, point to point connection
Technical |
Transmitter |
Receiver |
|
HDMI compliance |
HDMI2.0, compatible HDMI1.4 |
|
|
HDCP compliance |
HDCP2.2, compatible HDCP1.4 |
|
|
Transmission meduim |
CAT6/CAT6A/CAT7 |
|
|
Transmission distance |
≤70 meters |
|
|
Video bandwidth |
18Gbps |
|
|
Video support |
1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz |
|
|
Audio formats |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
HDR10(YUV4:4:4) |
support |
|
|
HDMI Loop-out |
support |
|
|
S/PDIF out |
support |
|
|
EDID through |
support |
|
|
KVM function |
support |
|
|
Input TMDS signal |
0.7~1.2Vp-p |
|
|
Input DDC signal |
5Vp-p |
|
|
Input |
HDMI INx1, DC2.1×1, USB-A ×1 |
DC2.1×1, RJ45×1, USB-A×2 |
|
Output |
HDMI OUT×1, RJ45 ×1 |
HDMI OUT×1, S/PDIF OUTx1 |
|
HDMI connector |
Type A 19 Pins,Female |
|
|
Network cable standard |
CAT6/CAT6A/CAT7 , follow IEEE-5688 standard |
|
|
HDMI Distance |
4K: 12 Foot Distance Maximum 1080p: 25 Foot Maximum Distance |
|
Mechanical |
|
|
|
Material |
Aluminium alloy material+crystal panel |
|
|
Dimensions (L ×W ×H) |
5.9 x 4.2 x 1.1 in (150.0 x 107.0 x 28.4mm) |
|
|
Net weight |
260g |
|
|
Power supply |
5V/2A |
|
|
Power consumption |
4W |
|
|
Operation temperaure |
-4°F ~140°F (-20°C ~60°C) |
|
|
Storage temperature |
-4°F ~140°F (-30°C ~70°C) |
|
|
Relative humidity |
0 ~ 90%(no condensation) |
