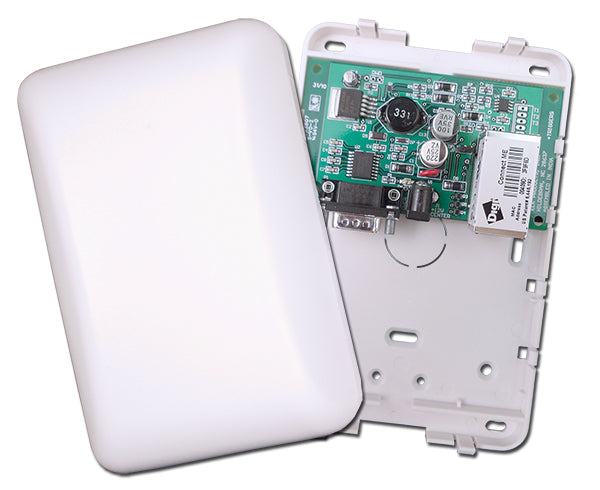

ELK Products ELK-M1XEP M1 Ethernet Interface

The ELK-M1XEP is an Ethernet Appliance with a RS-232 Serial Port Interface. It may be used to connect a control in the M1 Family to an Ethernet network. It features email event notification and FIPS compliant encryption algorithms for security sensitive environments. It is powered by an ELK-P1216 12 Volts DC, 1.5 Amp plug-in power supply/adapter. A software setup utility is built into ElkRP for configuring the connection setup, network password, etc. The M1 Ethernet Interface is factory defaulted to obtain a dynamic IP address from a DHCP server (i.e. router, cable modem, etc.). It may optionally be setup with a static IP address.

Features

• Secure connection with password protection and SSL/TLS encryption
• Flash Memory for Firmware Updating
• Event notification via E-Mail (SMTP)
• Supports automatic Dynamic DNS Updates with providers using the DynDNS protocol.
• Supports Network Time Protocol for synchronizing the M1/EZ8's clock with an Internet time server.
• Internet Monitoring and Reporting Capability
• Network stack supporting the following protocols:
  -TCP,UDP,DHCP,SSL/TLS, NTP, SMTP
• Federal Information Processing Standards (FIPS) 128 bit encryption
• Integrated 802.3 compliant 10/100 Mbit network interface
• RS232, DB9M 9-pin serial port connection
• Connects to the M1 RS-232 Serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
• RJ45 8-pin Network Jack
• 2.1mm barrel type power connector (center positive)
• LED Indicators for Power, Link, and Data

Specifications

• Operating Voltage: 12 Volts D.C. from Elk-P1216 Plug-in Power Supply **
• Current Draw: approx. 300 mA
• Housing Dimensions: 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions: 2.25" x 3.95"
• ELK-W040A Serial Ribbon Cable included
