Description

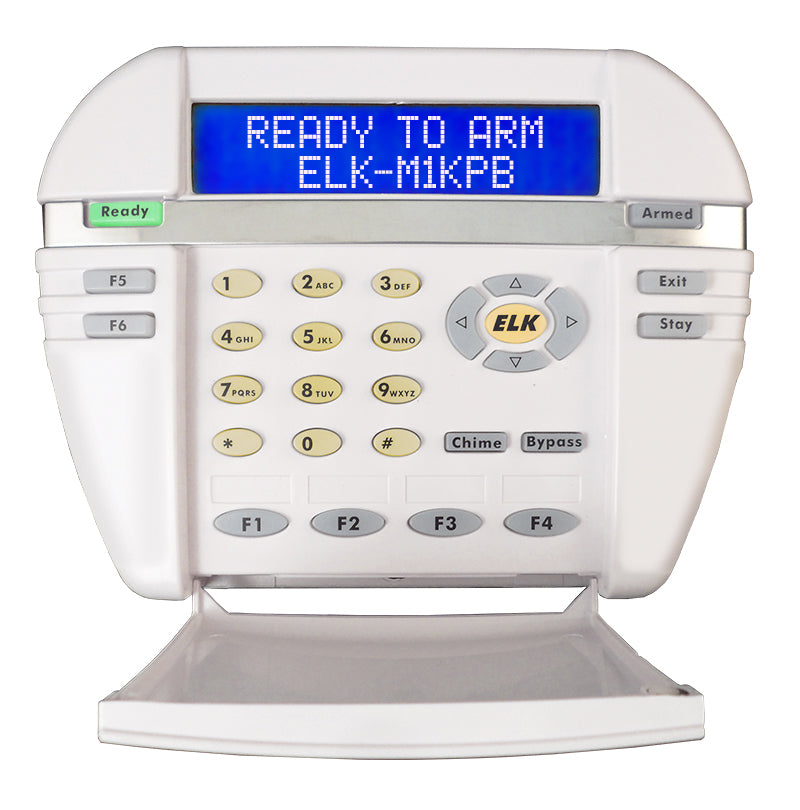

The ELK-M1KP is an addressable LCD Keypad for M1 Controls. It features a 32 character, backlit display with adjustable intensity and extra large character fonts, improving readability. Six (6) function (“F”) keys can be programmed to contact emergency services or perform tasks; such as, controlling lights, watering the lawn, closing or opening the garage door, etc. The ELK navigation keys easily guide you through the full list of automation tasks, programming, systems diagnostics, and more. An optional plug-in proximity reader is available allowing prox card or fob arming, disarming, door strike control, etc. The fold down door features magnetic closure and can be completely removed, if desired.
Features:
- Backlit, Large Character LCD Display, 16 x 2 lines
- Blue LCD Display
- Six (6) programmable function keys
- Unique Menu Navigation/Direction keys
- Adjustable volume for tones/chime
- Accepts Plug-in Proximity Reader (ELK-M1PR) or “External” 26 bit Wiegand Prox Reader
- Built-in Temperature Sensor
- Input for 1 Supervised Zone
- One Programmable “Switched Positive” Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Programmable display of time, date, & temperature
- Displays system diagnostics and settings
Specifications
- Input Connection: 6 Pin Plug-in "Flying Lead" Connector Included
- Proximity Connection: 5 Pin Plug-in "Flying Lead" Connector (optional ELK-WO35A required for external proximity reader)
- Color: White
- Operating Voltage: 13.8 VDC
- Current Draw: 40 - 50 mA Idle (low back light level, sounder silent)
- 160 mA Fully Active (max. back light & sounder active)
- Size: 6.875" x 5.25" x 1.375
