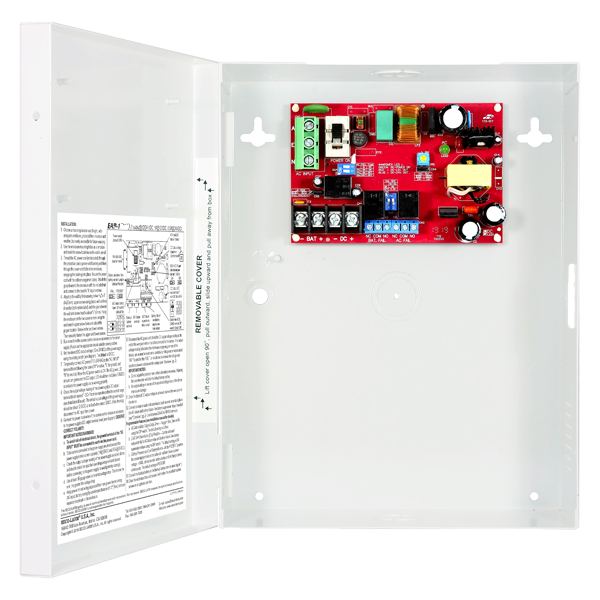

Seco-Larm EAP-1D1Q Access Control Power Supply

Seco-LarmSKU: EAP-1D1Q

Price:
Sale price$102.47
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • Input 110~240 VAC, fused at 3.15A
  • Filtered and electronically regulated output
  • AC Input and DC output LED status indicators
  • Adjustable output voltage to compensate for voltage drop
  • AC power failure supervision relay
  • Overcurrent fuse-protected AC input
  • Automatic shutdown for overcurrent / short-circuit protection
  • 12/24 VDC Outputs, field selectable
  • Battery failure / low battery supervision relay
  • Built-in back-up battery charger (Batteries not included)
  • Automatically switch to backup battery if AC fails
  • Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
  • Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch​

Enclosure

  • Heavy-duty steel case with removable cover for easy access to connections
  • Ventilation holes to prevent heat buildup
  • Room for one 7Ah battery or two 4AH batteries (Batteries not included)
  • Knockouts for power connections and optional cam lock
  • Dimensions: 73/4 “x101/16x39/16” (197x255x91 mm)



Specifications

Weight 4-lb 1.8-oz (1866g)
Dimensions 7-3/4″x10-1/16″x3-9/16″ (197x255x91 mm)
Input Voltage 110~240VAC
Output Voltage 12 or 24VDC selectable via DIP switch
Adjustable Output Voltage Range 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch
Number of Outputs 1
Total Supply Current 1A@12/24 VDC
Input Fuse Rating 3.15A ( glass fuse, AC)
LED Status Indicator AC input (Green), 12VDC Output (Red), 24VDC Output (Blue)
End-of-Line Resistor (EOL) Selectable ON (2.2k3) or OFF, 3A@24VDC dry relay output
