Description

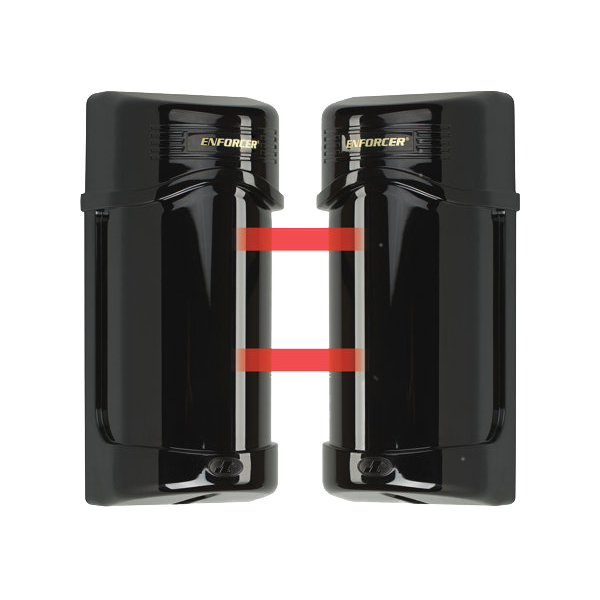

Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors. With the new E-964-D390Q, four selectable beam frequencies reduce interference between multiple units for enhanced perimeter protection.
- Built-in laser beam alignment system speeds accurate, reliable positioning
- Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
- Weatherproof (IP55), sunlight-filtering case for indoor & outdoor use
- Anti-frost system so that beam functions even in extreme conditions
- Automatic input power filtering with special noise rejection circuitry
- NC/NO alarm output
- N.C. tamper circuit included
- Non-polarized power inputs
- Quick, easy installation with built-in laser beam alignment system
- Interruption time adjustable for nearly all situations
Specifications
| Type | Twin Photobeam Multi-Frequency Detectors with Laser Beam Alignment |
| Current Draw | 88mA |
| Sensing Range | Outdoor- 390′ (120m), Indoor- 790′ (240m) |
| Operating Voltage | 10~30VAC / VDC (Non-polarized) |
| IP Rating | Weatherproof IP55 |
| Interupt Speed | 50msec~700msec (variable) |
| LEDs – Red | Alarm LED ON: When transmitter and receiver are not aligned or when beam is broken |
| LEDs – Yellow | Tuning LED (Receiver) ON: When receiver’s signal is weak or when beam is broken |
| LEDs – Green | Operation LED (transmitter & receiver) ON: Indicates connected to power |
| Detection System | Simultaneous break of 2 beams |
| Alarm Output | NO/NC relay, 1A @ 120VAC, min. 1 sec |
| Tamper Output | NC switch, 1A@120VAC |
| Case material | PC Resin |
| Laser Wavelength | 650nm |
| Operating Temperature | -13º~+131º F (-25º~+55º C) |
| Laser Output Power | <5mW |
| Alignment Angle | Horizontal (+/-)90º, Vertical: (+/-)5º |
| Weight | 2.5-lb (1.1kg) |
Troubleshooting
| Situation | Possible Issue | Solution |
| Transmitter LED does not light. | Incorrectly wired and/or insufficient voltage. | Ensure the power supply to the transmitter is 12 to 24 VAC/VDC. |
| Receiver LED never lights up when the beam is interrupted. | a. Insufficient voltage. b. Beam reflected away from receiver. c. Beams not simultaneously interrupted. |
a. Double-check the voltage. b. Clean the cover. c. Check overall installation. |
| Beams interrupted and LED lights, but no alarm trigger. | Alarm trigger cable may be cut, or the relay contact stuck due to overloading. | Check the continuity of the wiring between the sensor and the alarm |
| Alarm LED continuously lit. | a. Lenses out of alignment. b. Beams are blocked. c. Cover is foggy or dirty. |
a. Realign the lenses. b. Remove any obstacles. c. Clean the cover. |
| Alarm trigger becomes erratic in bad weather. |
Lenses out of alignment. | Check overall system installation. If still erratic, realign the lenses. |
| Frequent false triggers from leaves, birds, etc. |
a. Too sensitive. b. Bad location. |
a. Reduce the response time. b. Change the transmitter and/or location. |
