Seco-Larm E-942FC-600SQ 600-lb Electromagnetic Gate Lock, Face Mount, Weldable

Seco-LarmSKU: E-942FC-600SQ

Price:
Sale price$223.55
Stock:
Usually ships within 3-5 business days

Pickup available at Brooklyn

Usually ready in 24 hours

Our team of experts is a phone call away!
Call us at 718-435-2800

Description

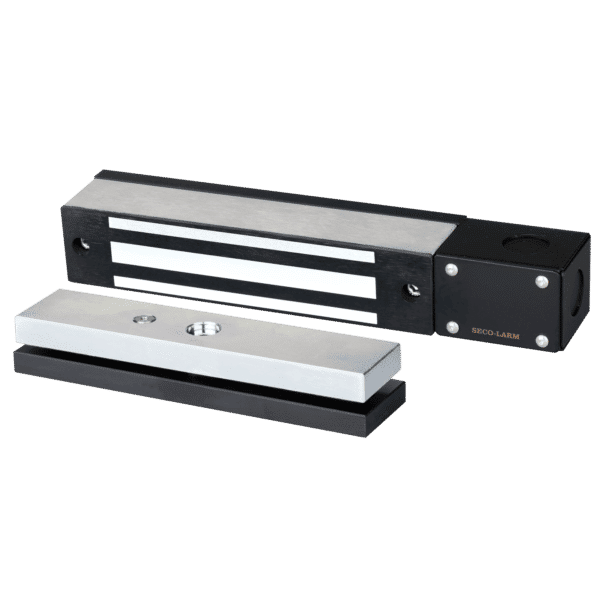

Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-600SQ is primarily designed for swinging gates.

  • 600-lb (272 kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Face mounting
  • For sliding or swinging gates
  • Weld or bolt brackets directly to the gate
  • Brackets are zinc-plated for corrosion resistance
  • Water- and vandal-resistant attractive stainless-steel black finish to match most gates
  • Maintenance-free, factory-sealed design
  • Fail-safe operation (releases if power is removed)
  • Waterproof (IP67) and vandal resistant for indoor and outdoor applications
  • Dual-threaded conduit fitting
  • Attractive stainless steel housing
  • Junction box with 4 knockouts
  • Complete mounting hardware for typical installations

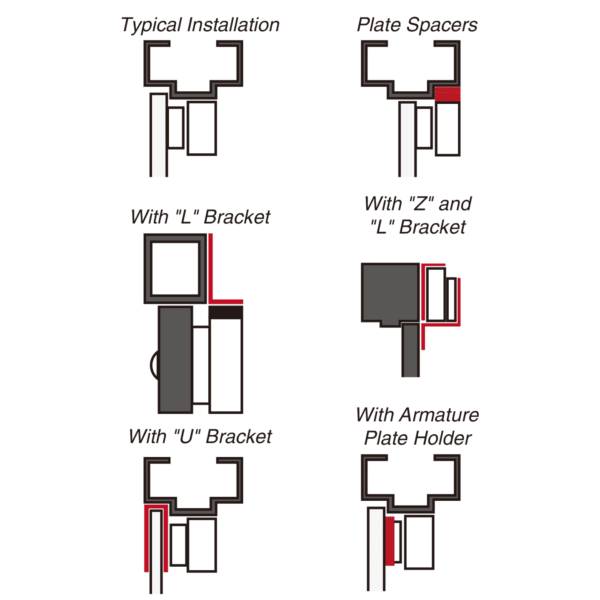

  • Additional brackets available for easy mounting or atypical situations
  • 12/24VDC Selectable
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO­LARM for details.

Specifications

Holding Force 600-lb (272kg)
Operating Voltage 12VDC or 24VDC
Current Draw 500mA@12VDC, 250mA@24VDC
IP Rating IP67 Waterproof
Operating Temperature 14º~131º F (-10º~55º C)
Certification RoHS, cUL, UL, CE
Weight 10.40-lb (4.75kg)
Maglock & Armature Weight (Approx.) 6.4-lb (2.9kg)
Bracket Weight (Approx.) 3.95-lb (1.8kg)
Type Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable



Troubleshooting

The gate does not lock
  • Check that the wires are secure
  • Check that the power supply is connected and operational
  • Check that the unit is wired correctly
The gate locks, but can easily be forced open
  • Check that the electromagnet and armature plate are properly aligned
  • Check that the contact surfaces of the electromagnet and armature plate are clean and free from rust
  • Check the power leads with a meter, and make sure the correct voltage is present
Delay in gate releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
