Description
The E-941SA-1K5Q 1,500-lb Single-Door Electromagnetic Lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
- 1,500-lb (680kg) Holding force
- No residual magnetism
- MOV Surge protection
- Suitable for horizontal or vertical installation
- Anodized aluminum housing (US 28)
- Keyhole slot mounting plate makes installation easier
- Complete mounting hardware for typical installations

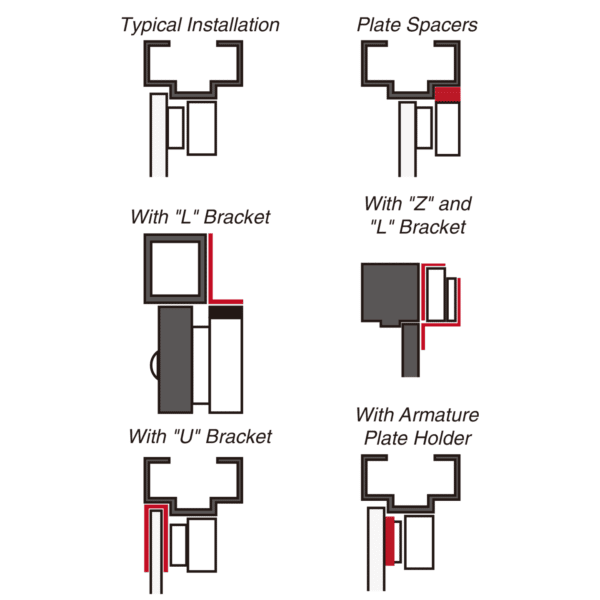

- Additional brackets available for easy mounting or atypical situations
- Detachable faceplate for easy access to wiring
- 12/24VDC Selectable
Specifications
Holding Force | 1,500-lb (680kg) |
Operating Voltage | 12/24 VDC |
Current Draw | 500mA@12VDC, 260mA@24VDC |
Coil resistance | 46Ω ±10% per coil |
Housing material | Anodized aluminum (US 28) |
Operating Temperature | 14°~131° F (-10°~55° C) |
Mounting plate dimensions | 11-1/4″x1-9/16″x1/4″ (286x40x6 mm) |
Electromagnet Dimensions | 11-1/4″x1-11/16″x2-5/8″ (286x43x67 mm) |
Armature Dimensions | 7-1/4″x5/8″x2-3/8″ (185x16x60 mm) |
Weight | 11-lb, 1.2-oz (5kg) |
Troubleshooting
Doors does not lock |
|
Doors lock, but can easily be forced open |
|
Delay in door releasing |
|
