Seco-Larm E-941SA-1K2PD 1,200-lb Electromagnetic Lock, Bond Sensor, Status LED, Timer, UL Listed

Seco-LarmSKU: E-941SA-1K2PD

Price:
Sale price$140.47
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

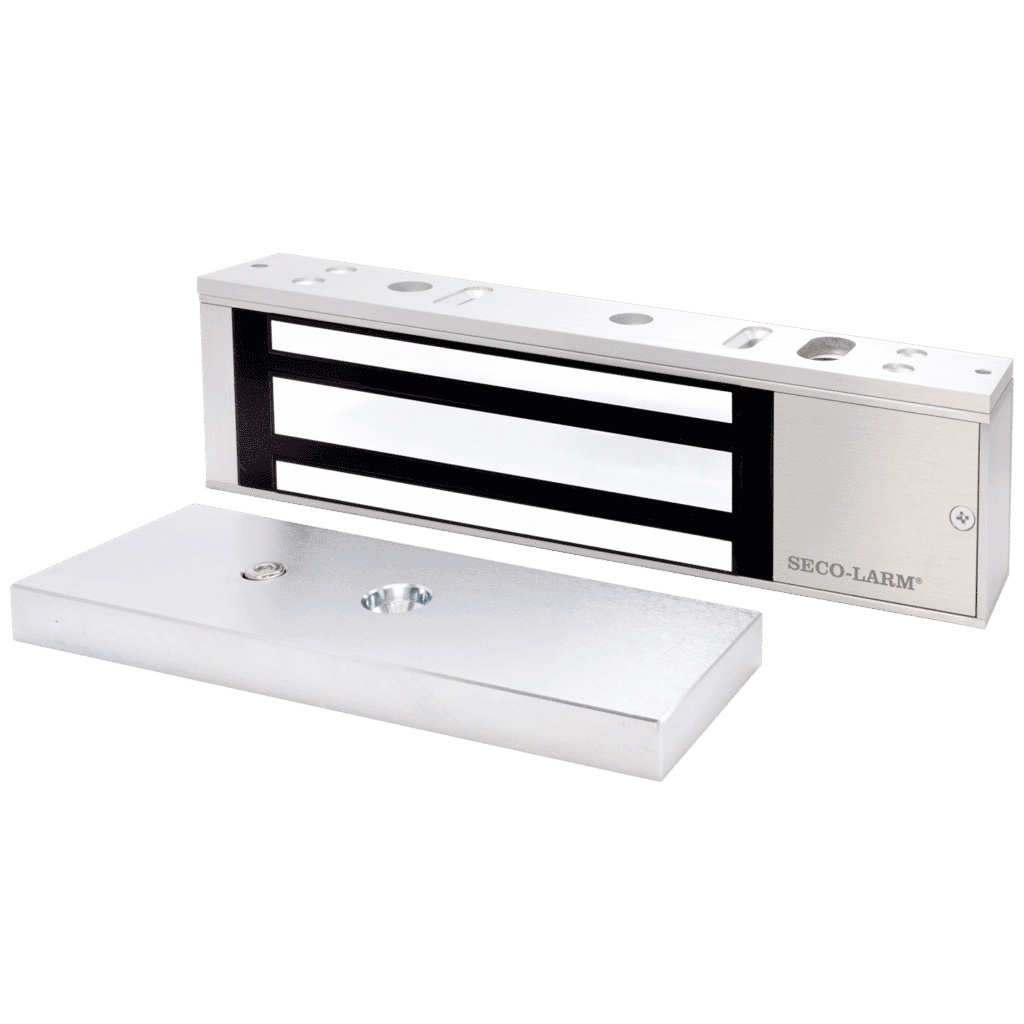

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

  • 1,200-lb (545kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Built-in status LED shows locked/unlocked status
  • Built-in bond sensor with 3A@12VDC dry relay output for monitoring door status
  • Built-in timer: 1~78 seconds
  • Anodized aluminum housing (US 28)

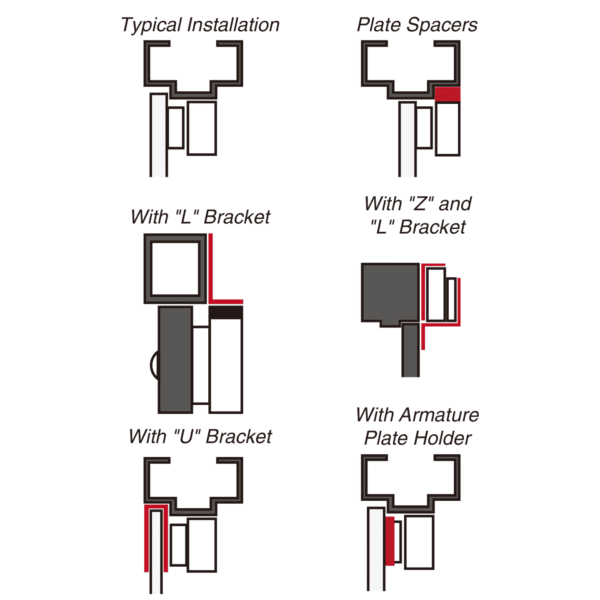

  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • Additional brackets available for easy mounting or atypical situations
  • Detachable faceplate for easy access to wiring
  • 12/24VDC Selectable
  • Multiple UL listings
        • UL294 Access Control System Units – USA
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO­LARM for details.

Specifications

Holding force 1,200-lb (545kg)
Operating voltage 12/24 VDC (selectable)
Current draw 500mA@12VDC, 270mA@24VDC
Operating temperature 32º~120º F (0º~49º C)

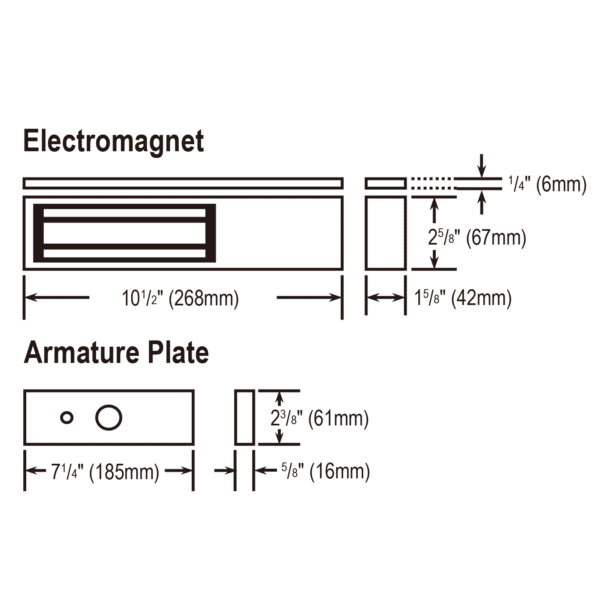

Magnet dimensions 10-1/2″x2-5/8″x1-9/16″ (267x67x67 mm)
Armature dimensions 7-1/4″x2-3/8″x5/8″ (185x61x16 mm)
Destructive attack  Level I
Line security Level I
Standby power  Level I
Endurance  Level IV
Weight 11-lb (5kg)
Bond Sensor Yes
Status LED Yes
Timer Yes



Troubleshooting

Doors lock, but can easily be forced open
  • Make sure the electromagnet and armature plates are properly aligned.
  • Make sure the contact surfaces of the electromagnet and armature plates are clean and free from rust.
  • Check the power leads with a meter, and make sure 12VDC or 24VDC is present.
  • Make sure the rubber washer is installed and free from damage.
Delay in door releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
  • Ensure that the control device is connected between the power source and the positive terminal of the lock
