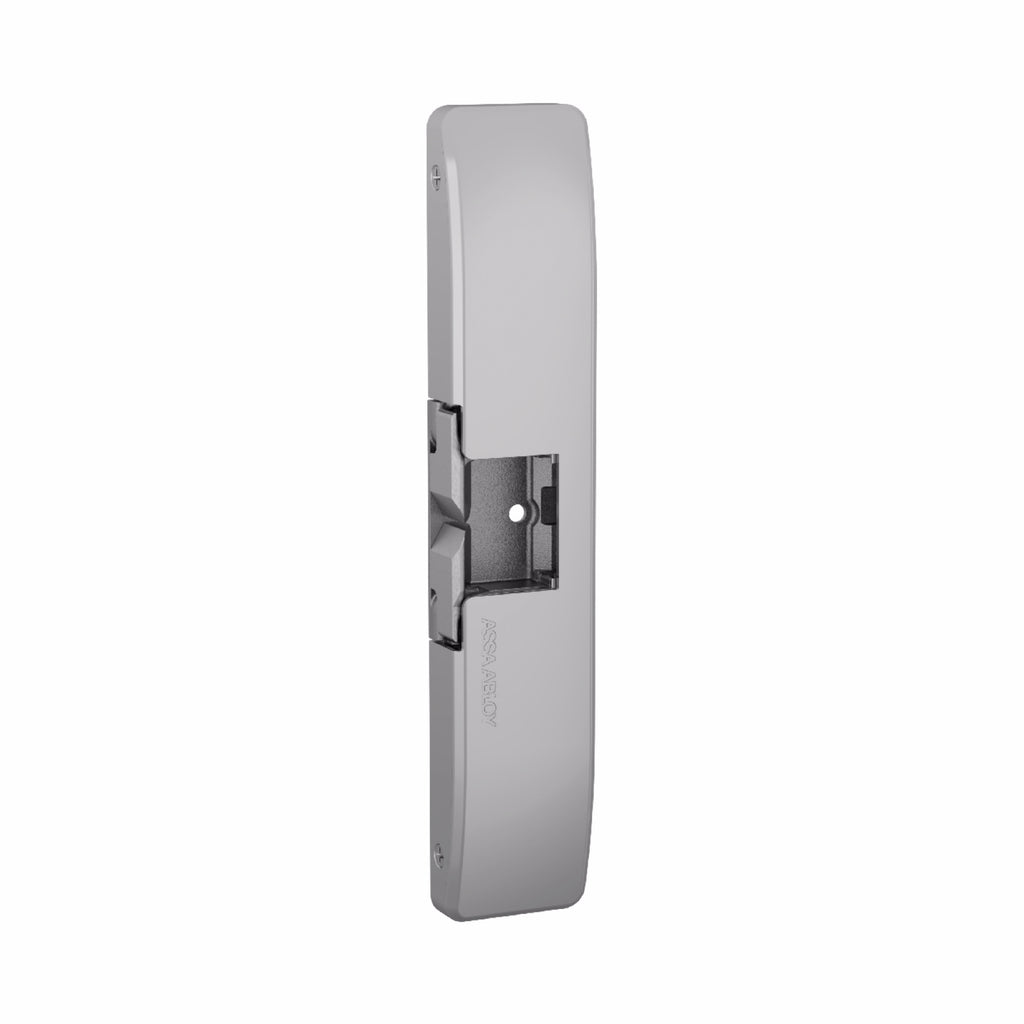

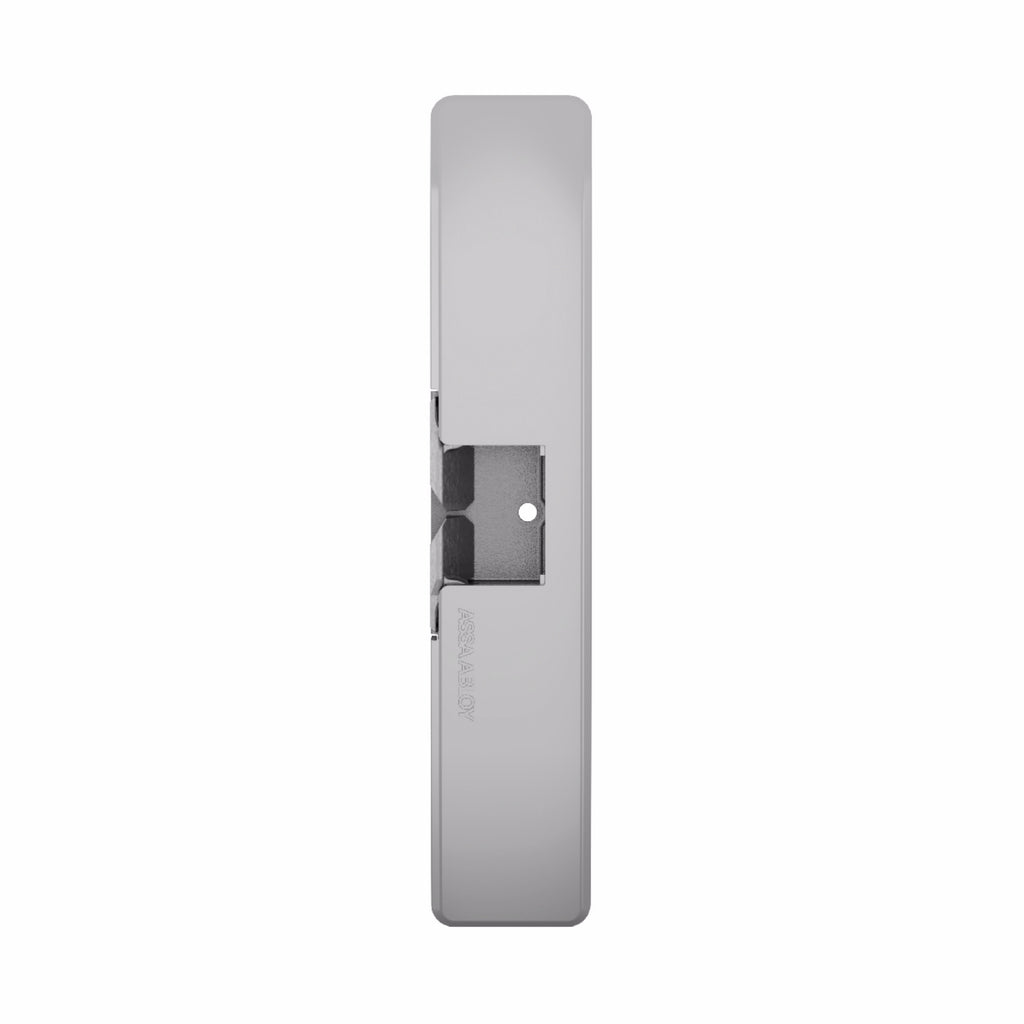

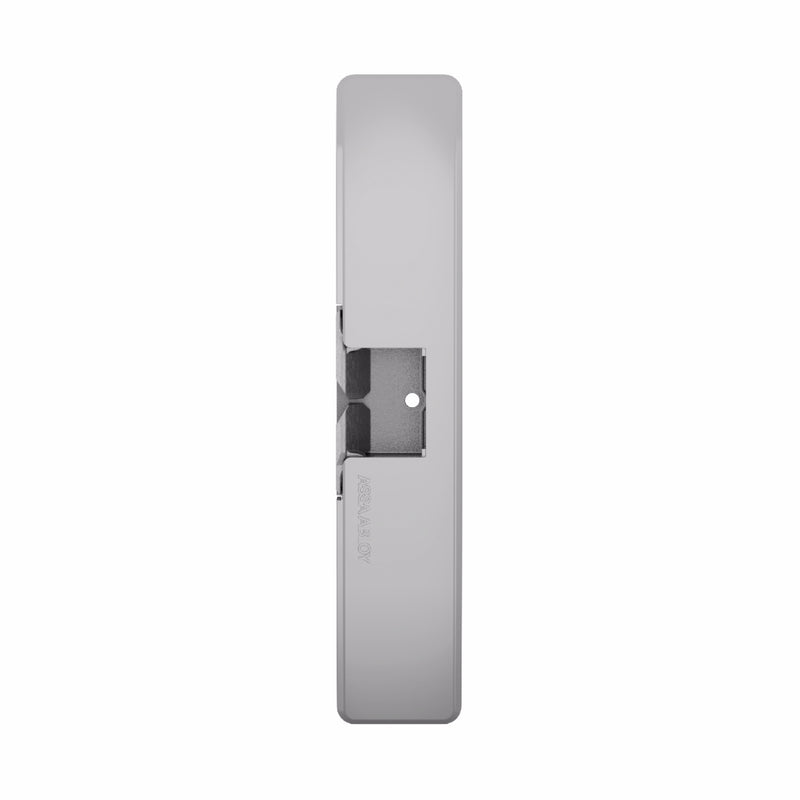

HES 9600-630 9600 Series Surface Mounted Electric Strike, Windstorm Resistant, Satin Stainless Steel

HESSKU: 9600-630

Sale price$315.00
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800


The stylish windstorm-rated, surface mounted solution.

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Product Features

  • Installs in metal or wood frames
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs
  • Dynamic strength 120 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" Pullman latch
  • Dual voltage 12 or 24 VDC


  • Adjustability : Horizontal
  • Surface Mounting : No cutting required
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : Up to 3/4"


  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Monitoring|Latchbolt Strike Monitor


Strength & Durability
  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 120
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure


General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Exit Device

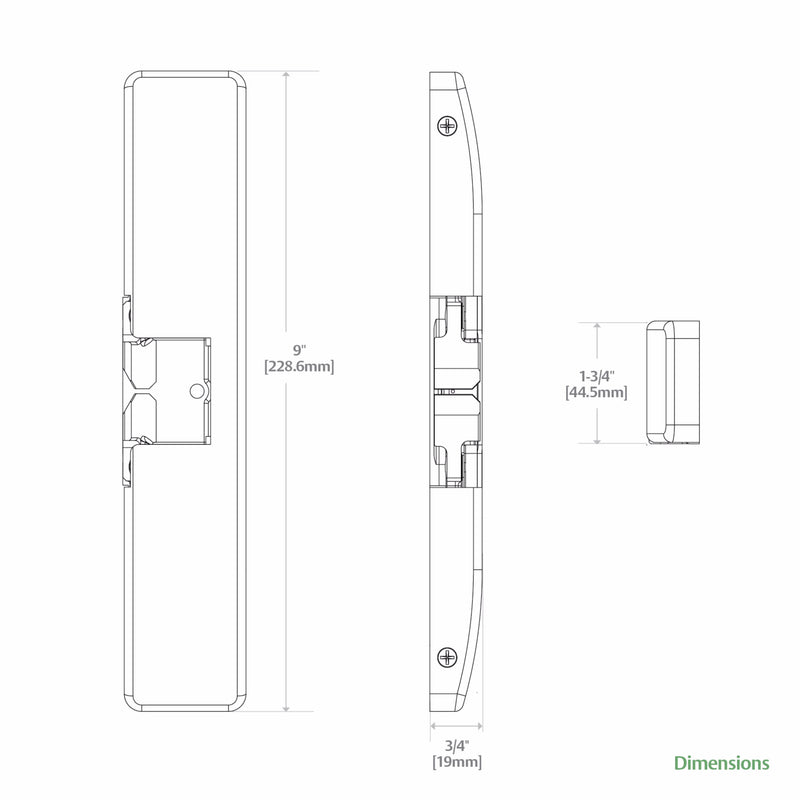

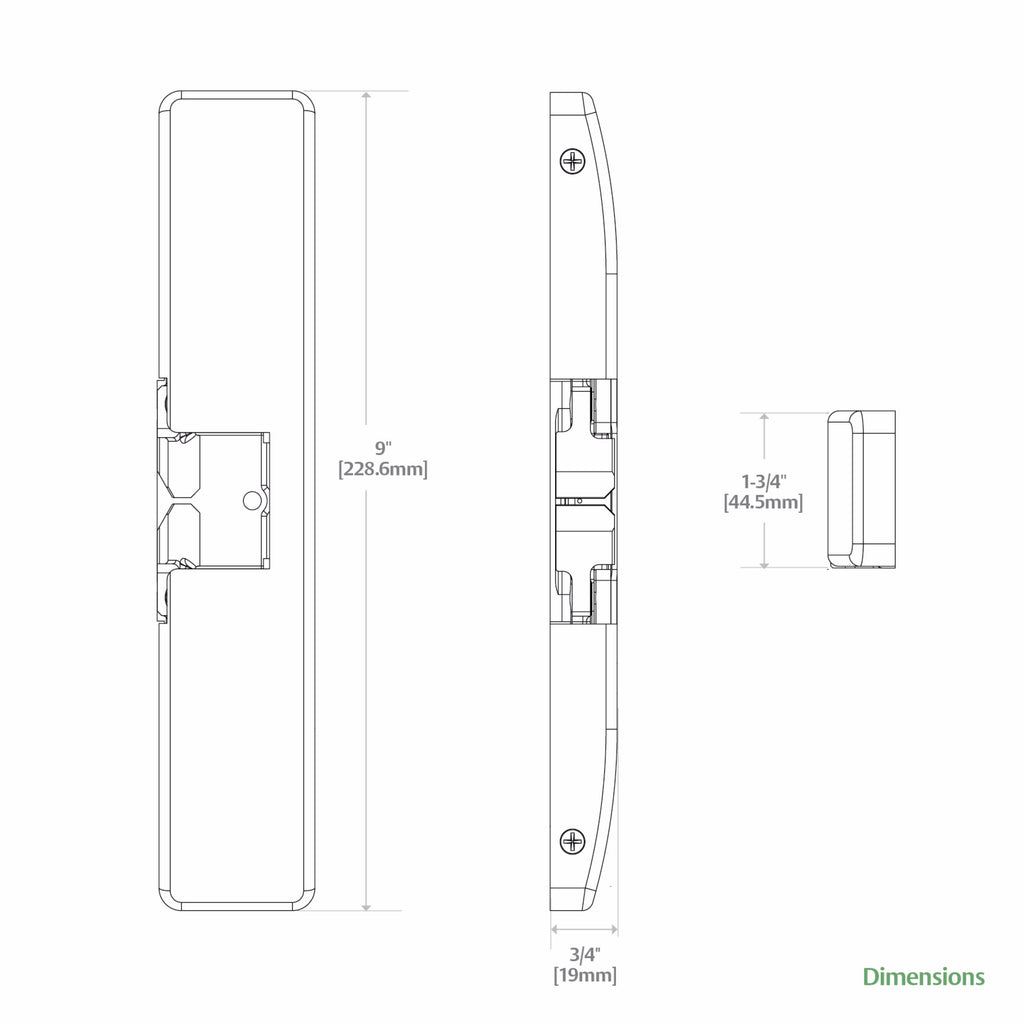

Weights & Dimensions
  • Strike Body Depth (in) : 0.75
  • Strike Body Height (in) : 9


  • ANSI/ASTM E330
  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Windstorm Resistant
  • Environmental Product Declaration (EPD)
  • Florida Building Code Approved TAS 201, 202, 203 (old)
  • Health Product Declaration (HPD)
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 305 - Standard for Panic Hardware
  • UL294 Listed
