Description

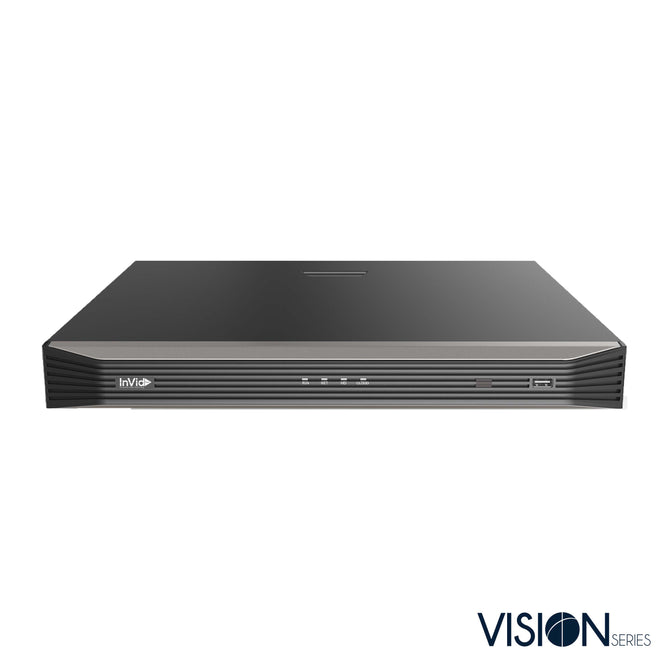

8 Ch NVR with 8 Plug & Play Ports, 320 Mbps, 2 HD Bays, 4K, With Cloud Upgrade
Features
- 8 Plug & Play Ports for easy camera setup PoE (Power Over Ethernet) available on all ports
- Up to 12 Megapixel Resolution Recording
- 320 Mbs Bit Rate Input
- Supports up to 8 channel simultaneous playback
- Works with ONVIF or other supported IP cameras (Profile S/G/T)
- Local HDMI main monitor output with 4K Support
- Local VGA main monitor output up to 1080p
- P2P Vision Stream Connect for Networking
- Multiple video search options including Smart Search for quick retrieval of footage
- H.265/H.264 video compression
- Upgrade your recorder via the Cloud
- Smart Analytic Support/ 8CH SIP Max
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software to easily manage your system from your Apple computer
|
Model |
VN3A-8X8 |
|
Video/Audio Input |
|
|
IP Video Input |
8-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
320Mbps |
|
Outgoing Bandwidth |
160Mbps |
|
Remote Users |
128 users or 1,024 channels |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS, DDNS,SNMP,SMTP,NFS |
|
Video/Audio Output |
|
|
HDMI/VGA Output (Independent) |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Audio Compression |
G.711A, G.711U |
|
Synchronous Playback |
8-ch |
|
Liveview Display |
1/4/6/8/9 |
|
Corridor Mode Screen |
3/4/5/7/9 |
|
Snapshot |
|
|
FTP/Schedule/ Event Snapshot |
16-ch snapshot, up to 1080P resolution |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30 |
|
Hard Disk |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
up to 18TB WD & 20TB Seagate |
|
Disk Group |
Support |
|
Smart |
|
|
VCA Detection by Camera |
Face detection, Face comparison, Intrusion detection, Cross line detection, Enter area, Leave area, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Vehicle control |
|
VCA Search |
Face search, Face Comparison search, Behavior search, Vehicle search |
|
People counting |
People flow counting, Crowd density monitoring |
|
Smart Intrusion Prevention |
(SIP), Face Dect/Comp, Vehicle Detection by Camera Total 8-ch (True AI) |
|
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
|
RS232 |
1 |
|
RS485 |
1 |
|
Alarm In |
8-ch |
|
Alarm Out |
2-ch |
|
PoE |
|
|
Interface |
8 RJ-45 10M/100M self-adaptive Ethernet Interface |
|
Max Power |
Max 30W for single port Max 130W in total |
|
Supported Standard |
IEEE 802.3af/at |
|
General |
|
|
Power Supply |
100 ~ 240V AC Power Consumption: ≤ 15W (without HDD) |
|
Working Environment |
14°F ~ 131°F (-10°C ~ 55°C), Humidity ≤ 90% RH (non-condensing) |
|
Dimensions (W×D×H) |
15.0” × 12.4”× 2.1” (380mm × 315mm × 53mm) |
|
Weight (without HDD) |
≤ 5.73lb (2.6Kg) |
|
Certification |
|
|
Certification |
UL, CE, FCC, RoHS, WEEE |
