Description

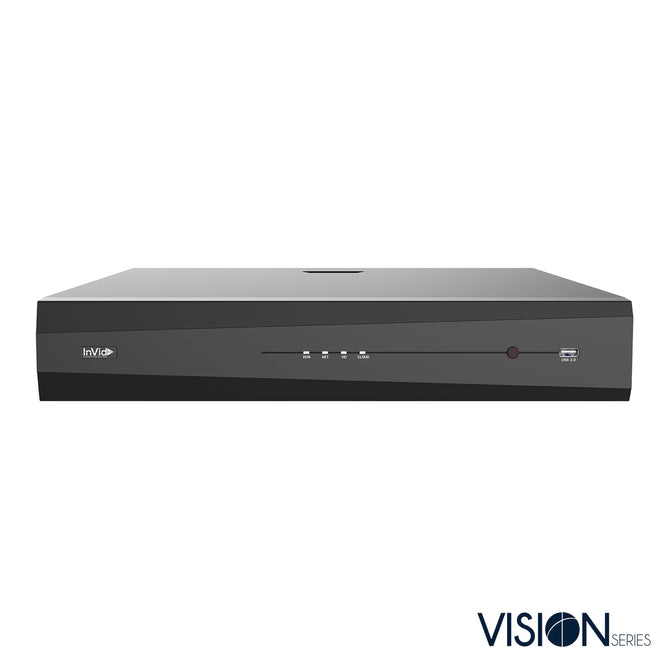

32 Ch NVR, 384Mbps, (2) NIC Cards, 4HDD Bays, 4k With Cloud Upgrade
Features
- 32 Channel with Dual NIC Cards
- Up to 12 Megapixel Resolution Recording
- 384 Mbps Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Smart Analytic Support/16ch SIP Max
- Works with ONVIF or other supported IP cameras
- Local HDMI main monitor output with 4K Support
- Local HDMI & VGA main monitor output up to 1080p
- P2P Vision Stream Connect for Networking
- Multiple video search options including Smart Search for quick retrieval of footage.
- Ultra 265/ H.265/H.264
- Supports RAID 1,5
- Upgrade your recorder via the Cloud
- Free Central Management Software (CMS)
- Free iOS & Android Apps for Smart Phones & Tablets
- Free MAC Client
Model |
VN2A-32 |
Video/Audio Input |
|
|
IP Video Input |
32-ch |
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 users or 1,024 channels |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, |
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Audio Compression |
G.711A, G.711U |
|
Synchronous Playback |
16-ch |
|
Liveview Display |
1/4/6/8/9/16/25/36 |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
Snapshot |
|
|
FTP/Schedule/Event Snapshot |
32-ch snapshot, up to 4K resolution |
Decoding |
|
|
Decoding format |
Ultra265/H.265/H.264 |
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 |
Hard Disk |
|
|
SATA |
4 SATA interfaces |
|
Capacity |
up to 18TB WD & 20TB Seagate |
|
eSATA |
1 eSATA Interface, Max Single Drive, 10TB, for Archiving Only |
|
Disk Group |
Support |
Disk Array |
|
|
Array Type |
RAID 1,5 |
Smart |
|
|
VCA Detection by Camera |
Face detection, Face comparison, Intrusion detection, Cross line detection, Enter area, Leave area, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Vehicle control |
|
VCA Search |
Face search, Face Comparison search, Behavior search, Vehicle search |
|
People counting |
People flow counting, Crowd density monitoring |
|
Smart Intrusion Prevention (SIP), Face Detection, Face Comparison by Camera |
16-ch |
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk offline , Disk Abnormal, Illegal Access, Hard disk space low, Hard disk full, Recording/Snapshot Abnormal |
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
|
RS232 |
1 |
|
RS485 |
1 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
General |
|
|
Power Supply |
100 ~ 240 V AC Power Consumption: ≤25W (without HDD) |
|
Working Environment |
14°F ~ 131°F (-10°C ~ 55°C), Humidity ≤ 90% RH (non-condensing) |
|
Dimensions (W×D×H) |
17.4” × 16.8”× 3.5” (442mm ×426mm× 89mm) |
|
Weight (without HDD) |
≤ 12.57lb (5.7Kg) |
Certification |
|
|
Certification |
FCC, CE, UL |
