Description

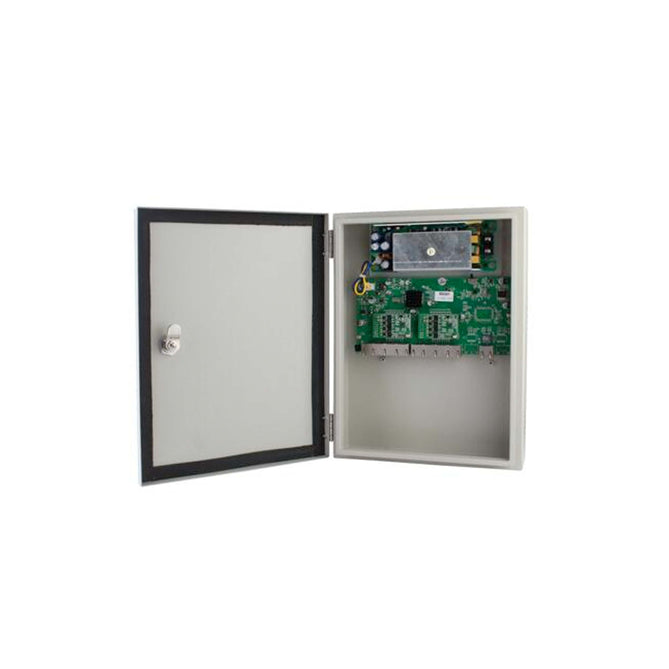

4-Ports 10/100/1000M POE waterproof box Ethernet Switch
Features
- Meet IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards
- 4-16 10 / 100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix
- Support 2-4K MAC address
- Support EEPROM configuration
- Support IEEE802.3 AT/AF mode
- Support switch speed limit function
- All 3KV ports support lightning protection
- Support stack and QoS
- Line speed forwarding, intelligent recognition
- Optical and electrical uplink port
- All ports support IEEE 802.3x half duplex flow control and full duplex back pressure mode
- Non blocking switching architecture, full line speed forwarding and maximum throughput filtering packets
- Support MAC address learning, automatically adjust transmission mode and transmission rate
- LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting
Power |
|
|
Power Supply |
DC: 52V, 65W * 1 groups |
|
Voltage Range |
100-240VAC 50/60HZ |
|
Switch Consumption |
< 6W |
|
Speed |
1-4 10 / 100/1000M RJ45 ports (auto negotiation / Auto MDI /mdix) One 10 / 1000M Base-T ports (auto negotiation / Auto MDI / mdix) |
Ethernet |
|
|
Transmission Distance |
1-4Port 100Meters with 1000Mpbs Uplink:100Meter with 1000Mpbs |
|
Ethenet Standard |
IEEE 802.3i, IEEE 802.3u,IEEE 802.3at,IEEE 802.3af |
|
Switching capacity |
10Gbps |
|
Transfer Rate |
10Mbps:14880pps; 100Mbps:148800pps; 1000Mbps:1488000pps |
Network Switch |
|
|
MACAddress |
2K |
Function |
|
|
On (Green) |
The port is connecting |
|
Blinks |
The port is receiving or transmitting data |
|
Off |
The port is not linked successfully with the device |
POE (12,36) |
|
|
On (Orange) |
PD is connected |
|
Off |
No PD is connected or power forwarding fails |
Working Environment |
|
|
working Temperature |
32°F ~158°F (-10°C ~ 70°C) |
|
Storage Temperature |
-40°F ~ 158°F (-40°C ~ 70°C) |
|
Humidity Non condesing |
10%~90 |
Mechanical |
|
|
Dimension L*W*H |
8.7 x 7.5 x 2.4 in (220 X 190 X 61mm) |
|
Color |
White grey |
