Description

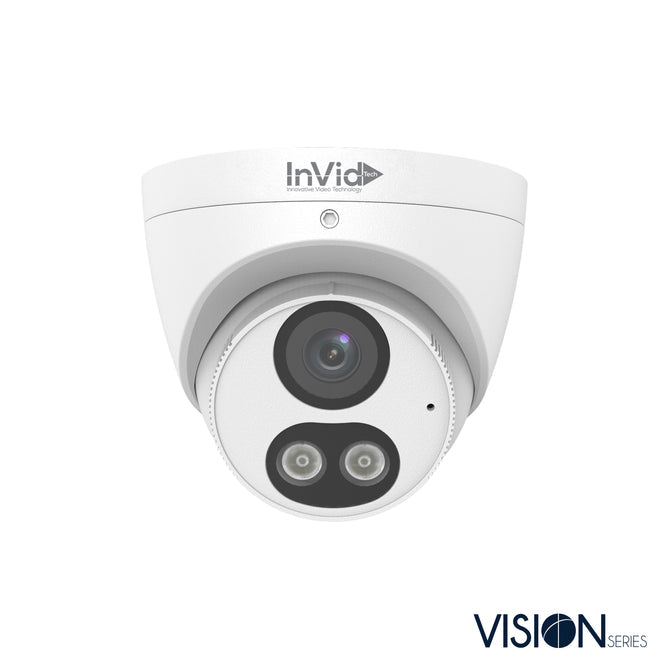

5 Megapixel IP Plug & Play, Outdoor Turret, White Light, WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- White Light: 24/7 Full-Color Image
- 5 Megapixel Resolution
- Fixed Lens
- LED Distance Up to 98ft (30m)
- Starlight Illumination
- Ultra 265,H.265,H.264, MJPEG
- 25 FPS Recording and Live
- True WDR 120dB
- Cloud Upgradeable
- Micro SD Slot: Up to 256GB
- Built-in Mic
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software(CMS)
- Free MAC Client
Camera |
VIS-P5TXIR28NH-AIWL |
|
Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
|
Lens |
2.8mm@F1.0 4.0mm@F1.0 |
|
DORI Distance |
Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
2.8 206.7(63m) 82.7(25.2m) 41.3(12.6m) 20.7(6.3m) |
|
|
4.0 295.3(90m) 118(36m) 59(18m) 29.5(9m) |
|
|
Angle of View (H) |
102° 80.2° |
|
Angle of View (V) |
53.4° 43° |
|
Angle of View (O) |
121° 94.7° |
|
Adjustment angle |
Pan: 3°~360° Tilt: 0° ~ 80° Rotate: 3°~360° |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Minimum Illumination |
Colour: 0.001Lux (F1.0, AGC ON) |
|
S/N |
>56dB |
|
Defog |
Digital Defog |
|
WDR |
120dB |
|
LEDs Number |
2 |
|
LED Distance |
Up to 98ft (30m) |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main Profile |
|
Frame Rate |
Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
9:16 Corridor Mode |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Up to 8 areas |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital noise |
2D/3D DNR |
|
Smart Illumination |
Support |
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|
HLC |
Support |
|
BLC |
Support |
Intelligent |
|
|
Smart intrusion Prevention |
Cross Line, Intrusion, Enter Area, Leave Area detection; |
Events |
|
|
Basic Detection |
Motion detection, Tampering alarm, Audio Detection |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
|
|
Audio Compression |
G.711 |
|
Suppression |
Supported |
|
Sampling Rate |
8KHZ |
Storage |
|
|
Edge Storage |
Micro SD, up to 256GB |
|
Network Storage |
ANR, NAS(NFS) |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
|
Client |
Vision CMS, InVid Vision App |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface |
|
|
Built-in Mic |
Supported |
|
Audio Sensitivity |
-32±3dB |
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
Certifications |
|
|
Certifications |
CE: EN 60950-1 |
|
UL: UL60950-1 |
|
|
FCC: FCC Part 15 |
|
General |
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Power consumption: Max 7.5W |
|
|
Dimensions (Ø x H) |
Ø4.4” x 3.7” (Φ110.5 x 94.1mm) |
|
Net Weight |
0.97lb (0.44kg) |
|
Material |
metal |
|
Working Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
|
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
|
surge protection |
2KV |
|
Ingress Protection |
IP67 |
