Description

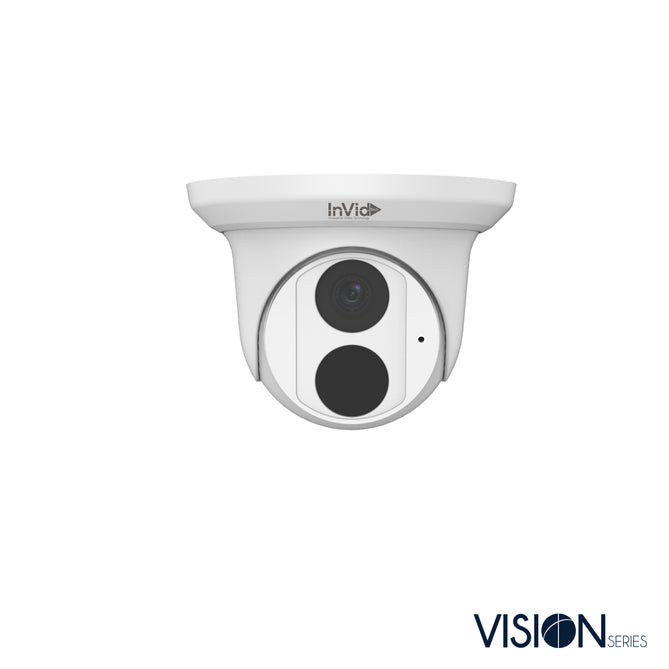

5 Megapixel IP Plug & Play Outdoor Turret, 98’ EXIR Range, WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 5 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- Smart IRs
- Starlight Illumination
- Ultra H.265/H.265/H.264/MJPEG Compression
- 25 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Built-in Mic
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
VIS-P5TXIR28NH |
|
Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
|
Lens |
2.8mm@F1.6 4.0mm@F1.6 |
|
DORI Distance |
Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
2.8 206.7(63m) 82.7(25.2m) 41.3(12.6m) 20.7(6.3m) |
|
|
4.0 295.3(90m) 118.1(36m) 59.1(18m) 29.5(9m) |
|
|
Angle of View (H) |
112.7° 86.5° |
|
Angle of View (V) |
60.1° 44.1° |
|
Angle of View (O) |
146.5° 112.5° |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Adjustment angle |
Pan: 0°~360° Tilt: 0° ~ 80° Rotate: 0°~360° |
|
Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Digital noise |
2D/3D DNR |
|
S/N |
>56dB |
|
IR Range |
Up to 98ft (30m) IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
|
Defog |
Digital Defog |
|
WDR |
120dB |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main Profile |
|
Frame Rate |
Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Up to 8 areas |
|
Motion Detection |
Up to 4 areas |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital noise |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal/Vertical/Horizontal |
|
Dewarping |
Supported |
|
HLC |
Supported |
|
BLC |
Supported |
Audio |
|
|
Audio Compression |
G.711 |
|
Suppression |
Supported |
|
Sampling Rate |
8KHZ |
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR |
Smart |
|
|
Behavior Detection |
Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
|
Compatible |
ONVIF (Profile S, Profile T), API |
|
Clients |
InVid Vision (Mobile App) |
|
Vision Tools (IP Utility) |
|
|
InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 &below, Firefox 52 &below |
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface |
|
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
Built-in Mic |
Supported |
|
Audio Sensitivity |
-32±3dB |
Certifications |
|
|
Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
General |
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Power consumption: Max 5.5W |
|
|
Dimensions (Ø x H) |
Φ4.4” x 3.7” (Φ110.5 x 94.1mm) |
|
Net Weight |
0.73lb (0.33kg) |
|
Material |
Metal |
|
Operating Conditions |
-22°F ~ 140°F (-30°C ~ 60°C, Humidity: ≤95% RH (non-condensing) |
|
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
2KV |
|
Ingress Protection |
IP67 |
